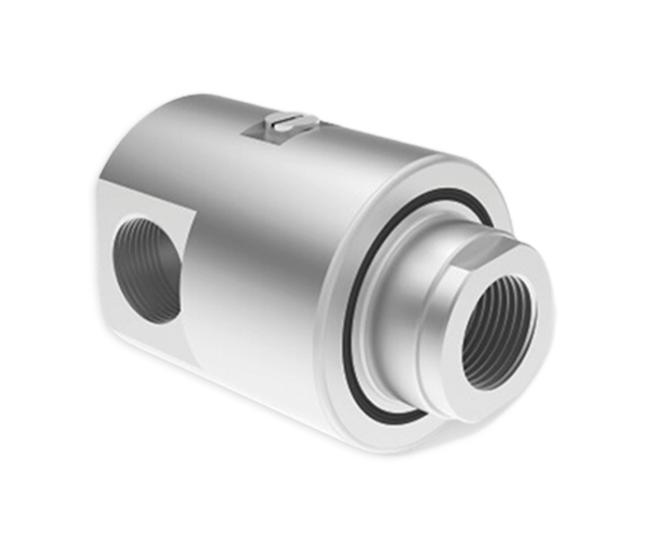

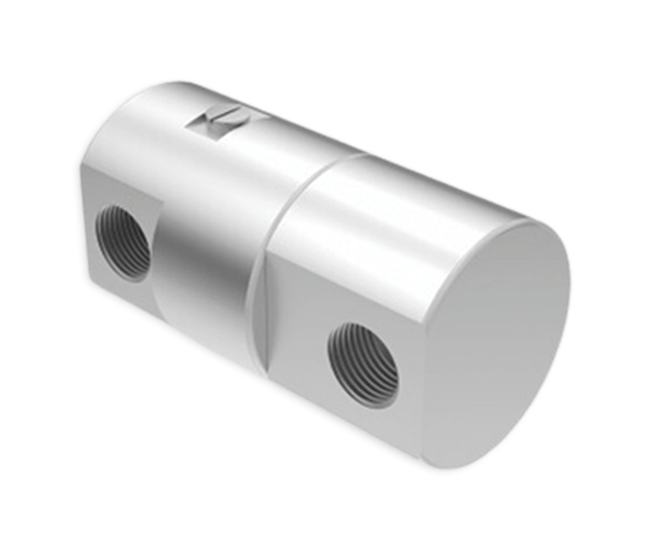

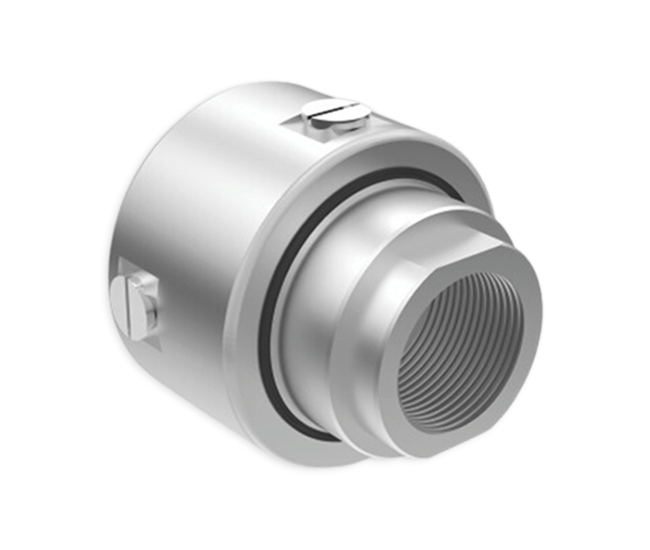

PS 400 HEAVY DUTY PIPE SWIVEL JOINTS

TYPE : PS 400

SIZES: 3/4” TO 12”

OPERATING DATA

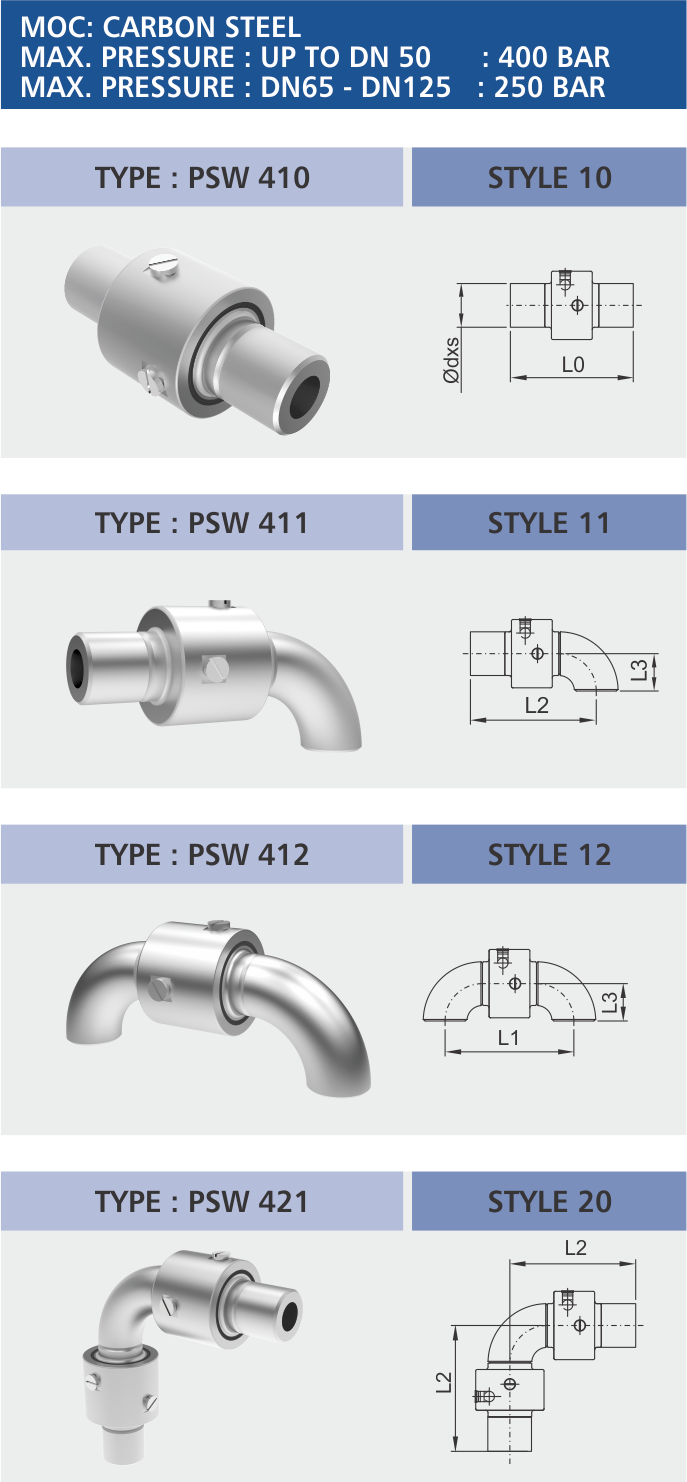

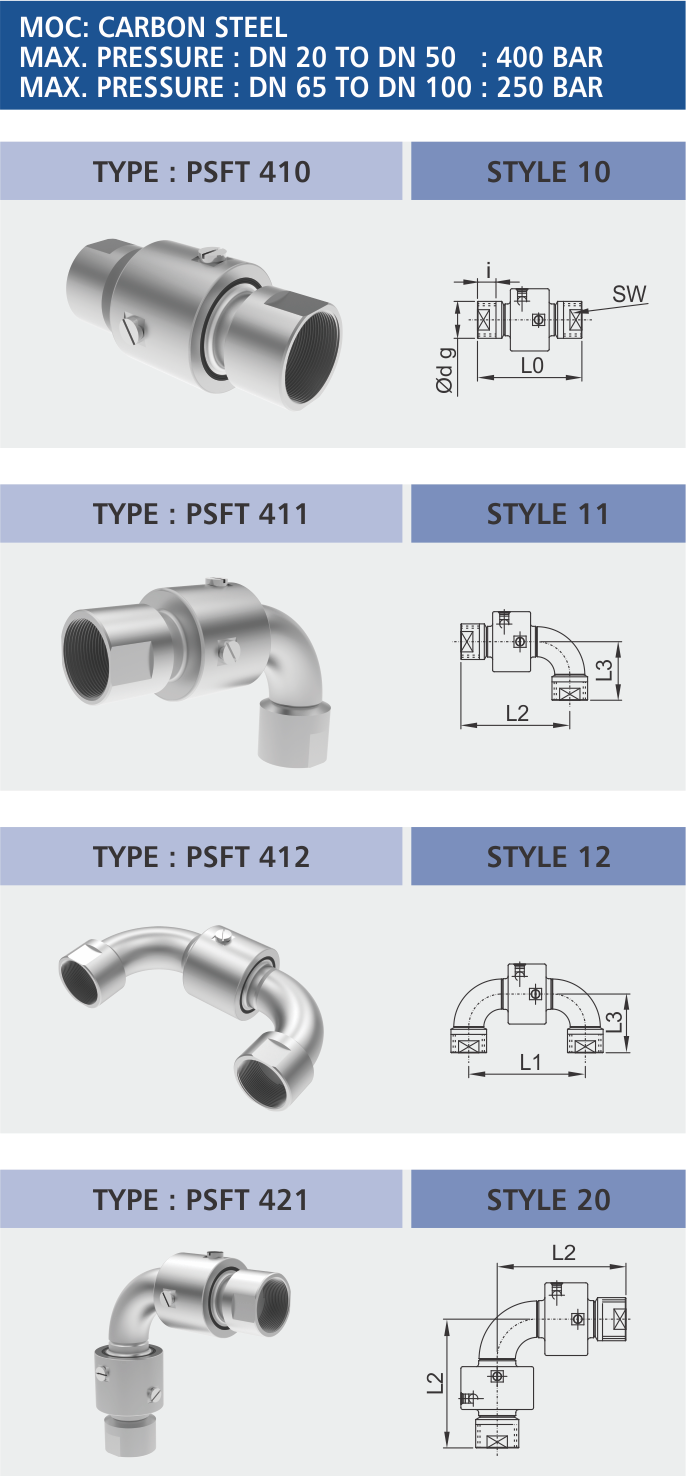

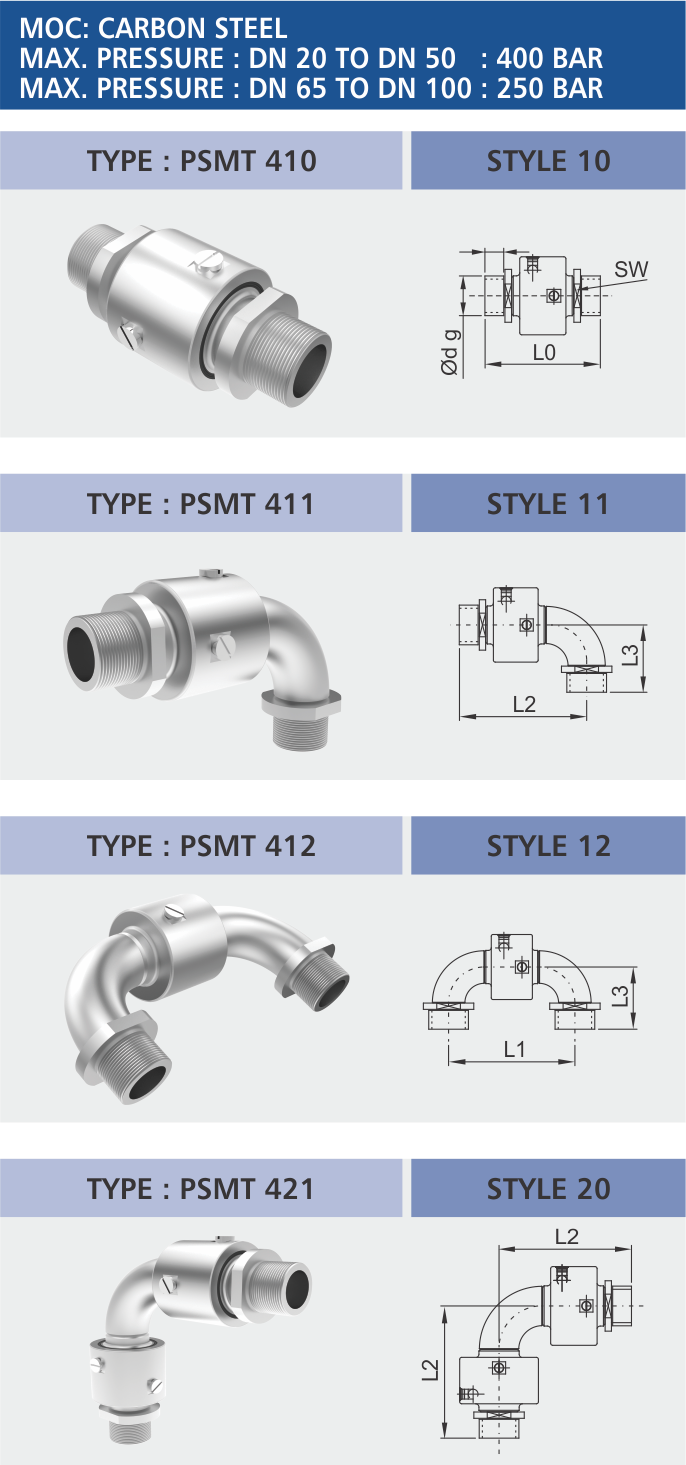

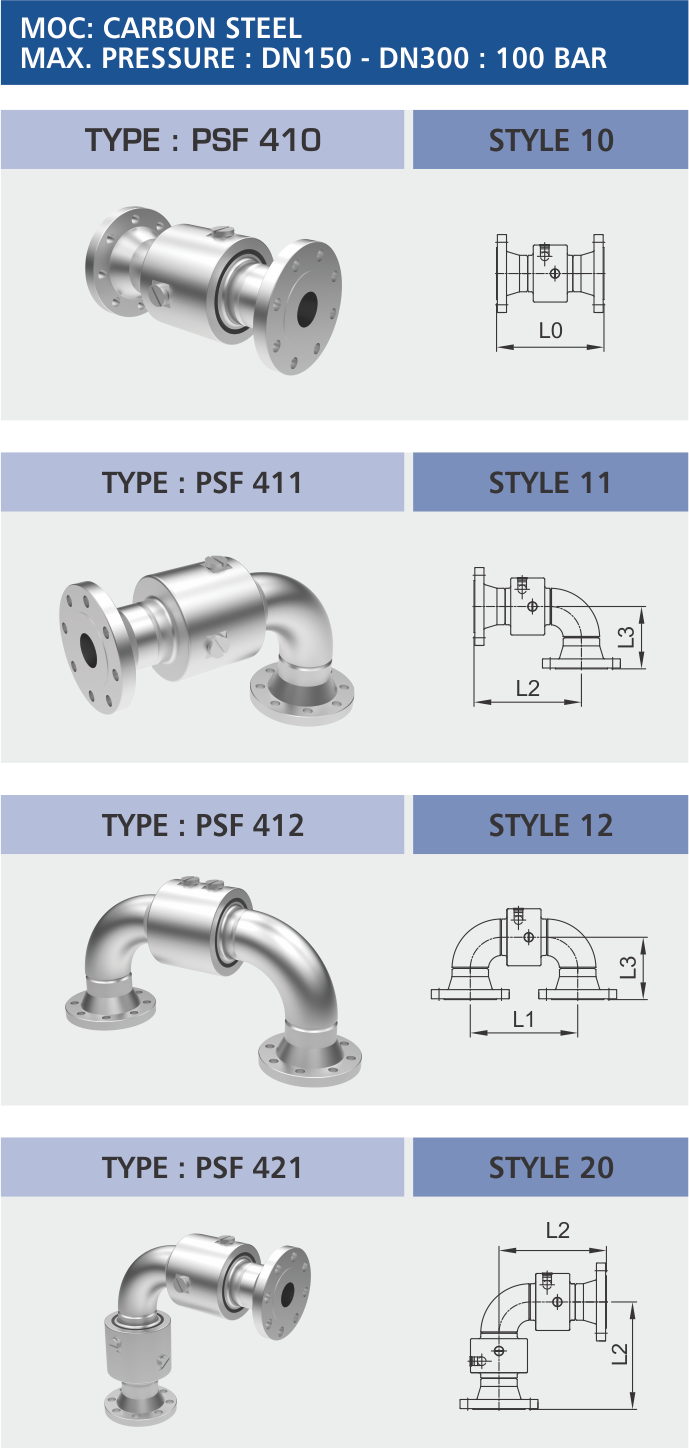

MOC : CARBON STEEL MAX. PRESSURE	UP TO DN 50 : 400 BAR DN 65 - 125 : 250 BAR DN 150 - 300 : 100 BAR

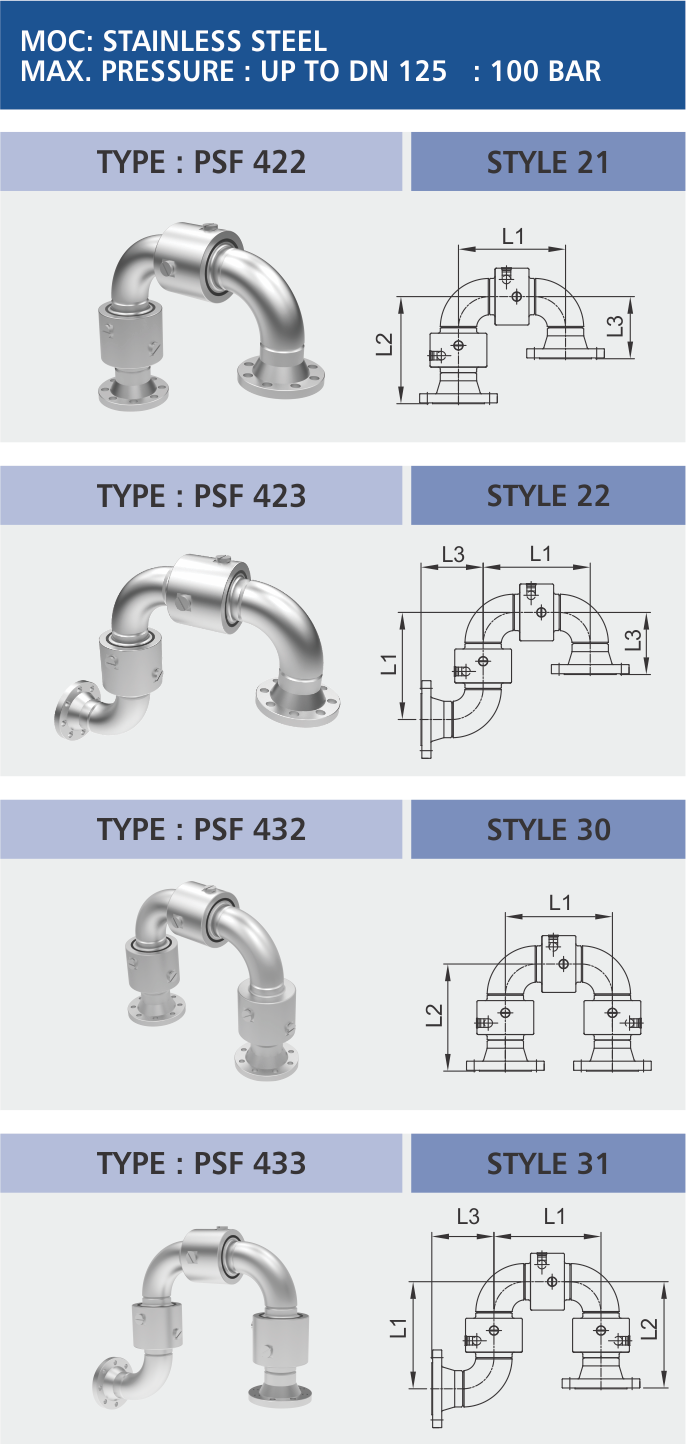

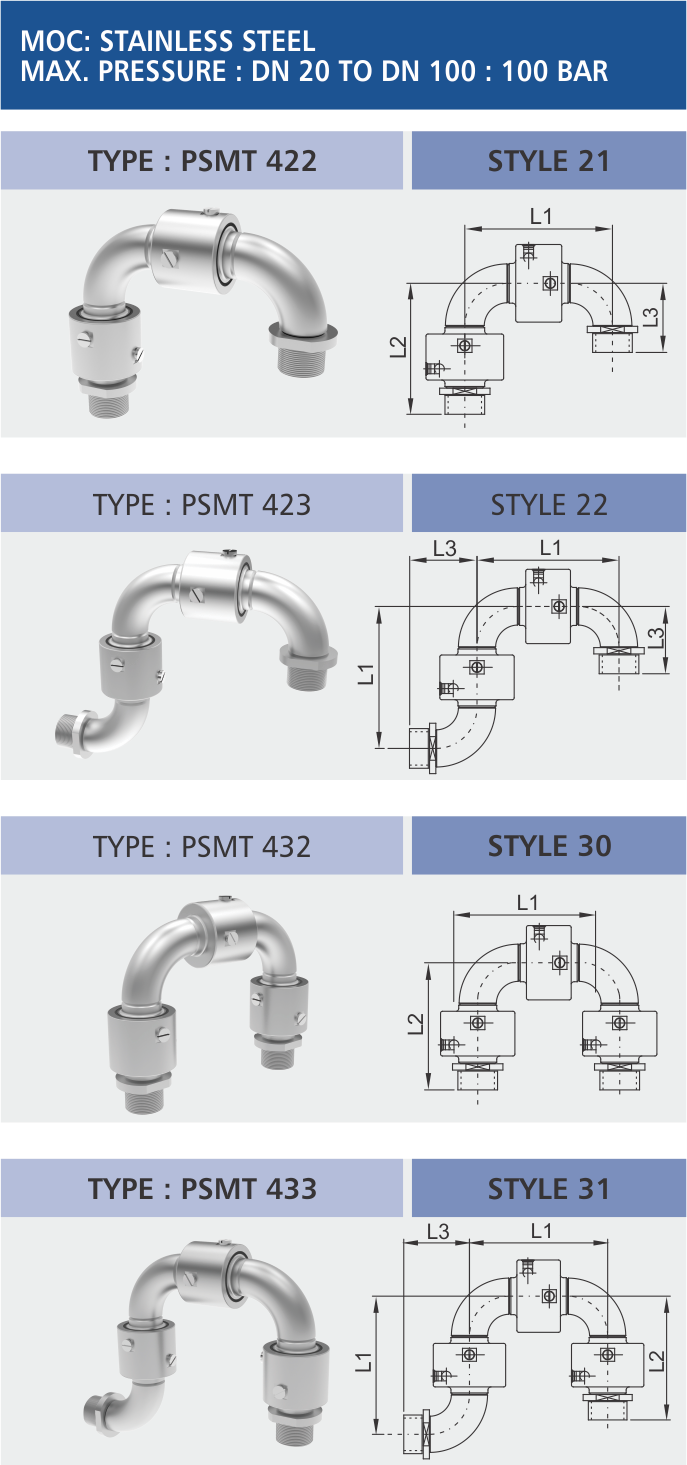

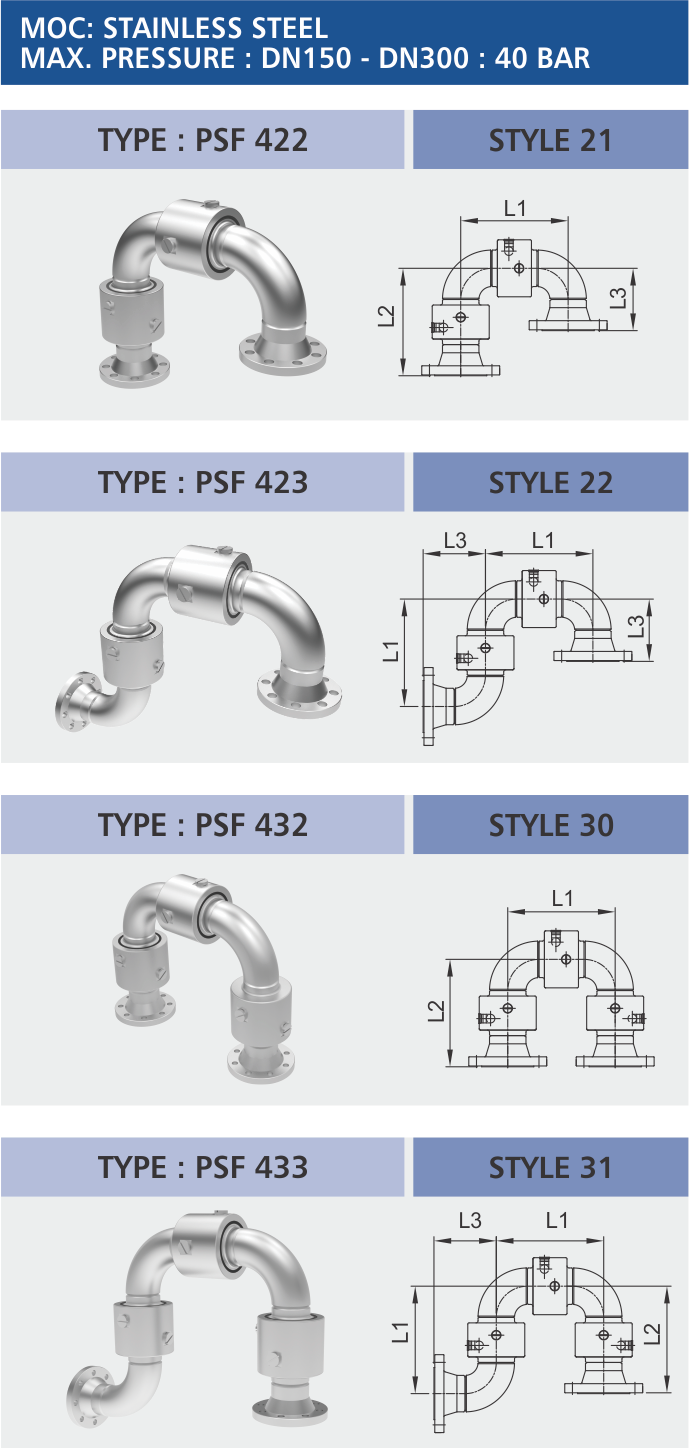

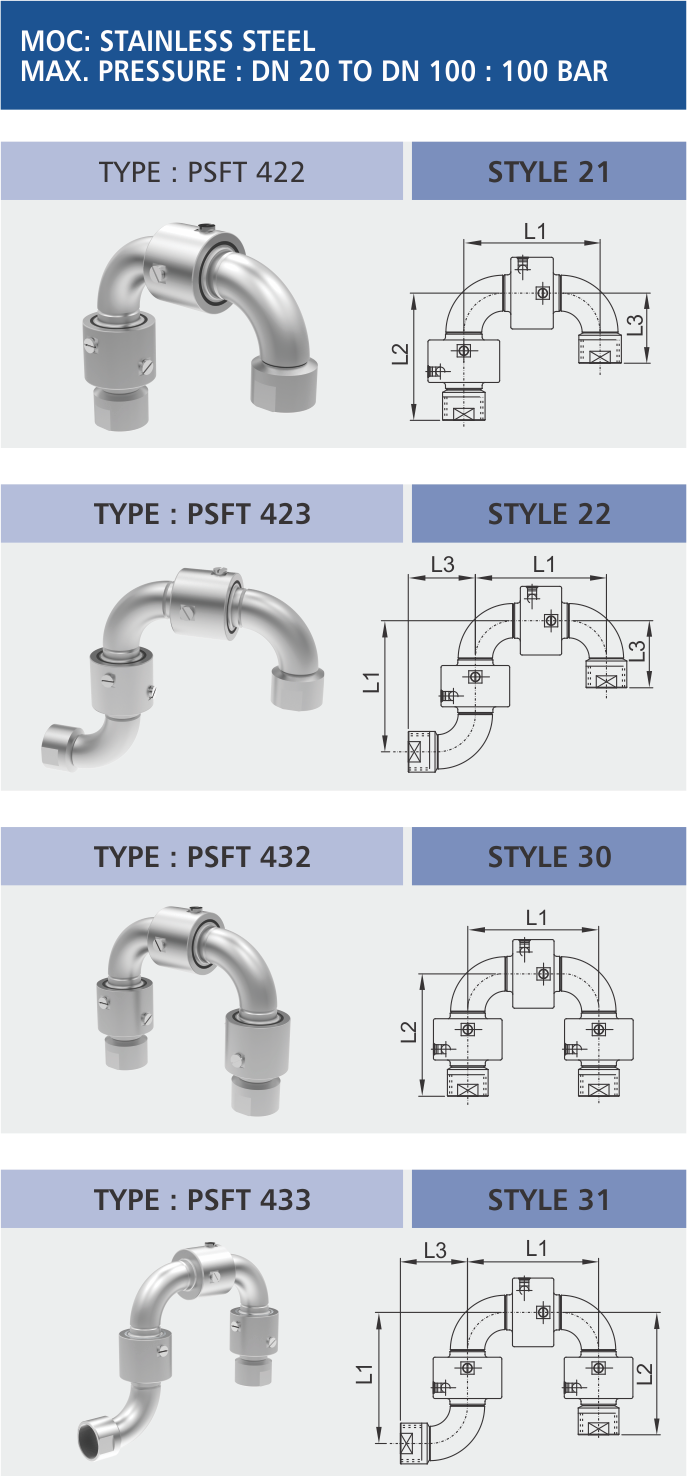

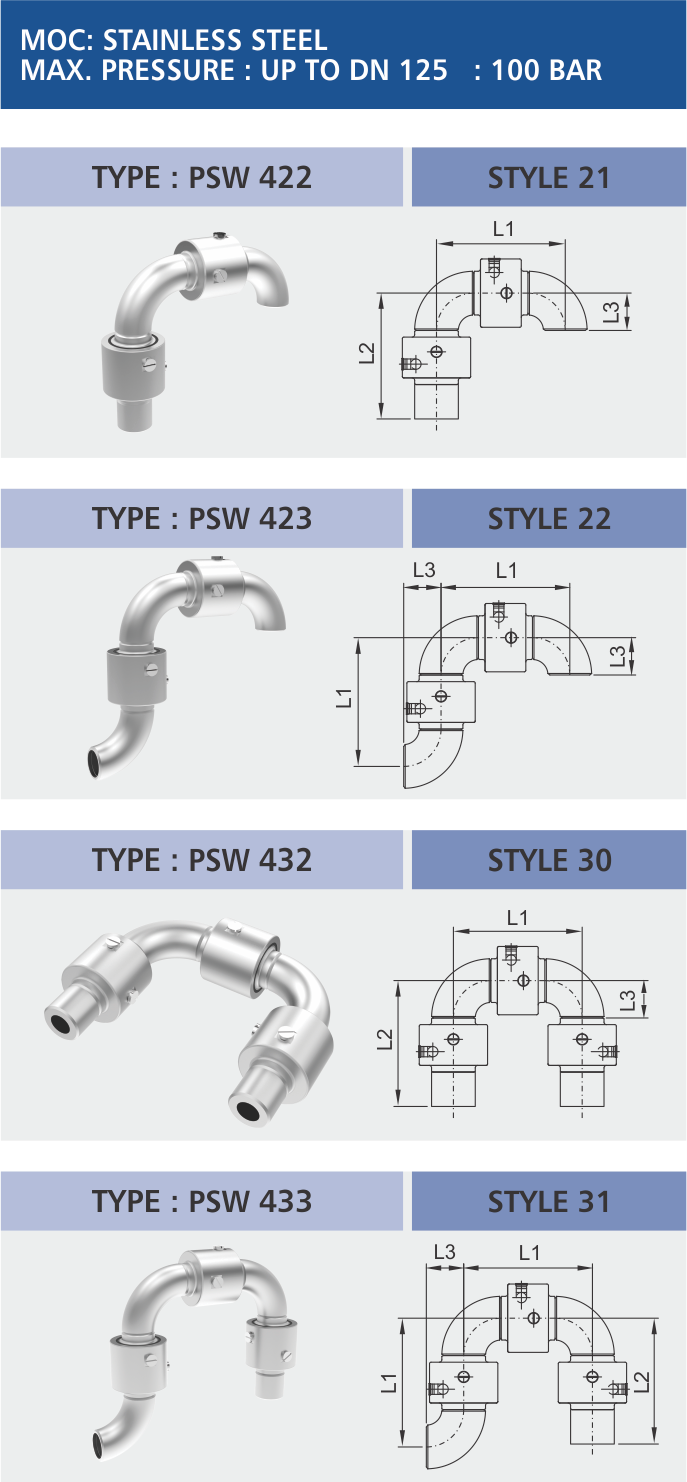

MOC : STAINLESS STEEL MAX. PRESSURE	UP TO DN125 : 100 BAR DN 150 - 300 : 40 BAR
MAX. TEMPERATURE	UP TO 200° C

DESIGN FEATURES

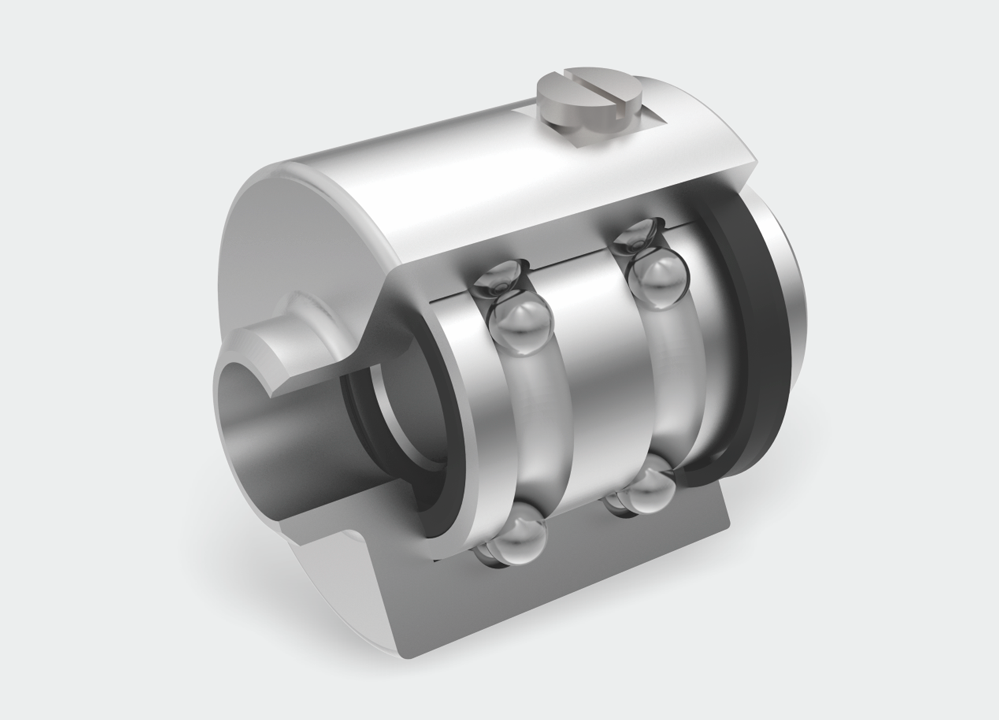

THE ‘ FOURWENTS’ PS400 TYPE SWIVEL JOINTS ARE BUILT WITH DOUBLE RAW BALL GUIDING TRACK. THEY ARE IDEALLY SUITABLE FOR HEAVY LOAD APPLICATIONS. THE CLEAR BORE HELPS TO REDUCE PRESSURE LOSS.
SIZE: THE SIZES AVAILABLE FROM 3/4” TO 12”. PRESSURE RATINGS: ‘FOURWENTS’ PS400 TYPE
SWIVEL JOINTS ARE PRESSURE RATED UP TO 400 BAR FOR STEEL WHILE UP TO 100 BAR FOR SS.
TEMPERATURE: 50° C TO 200° C
MOC BODY & ROTOR: CARBON STEEL / SS 304 / SS 316 / SS 316 L
SEAL: CFT - SUITABLE FOR 200° C

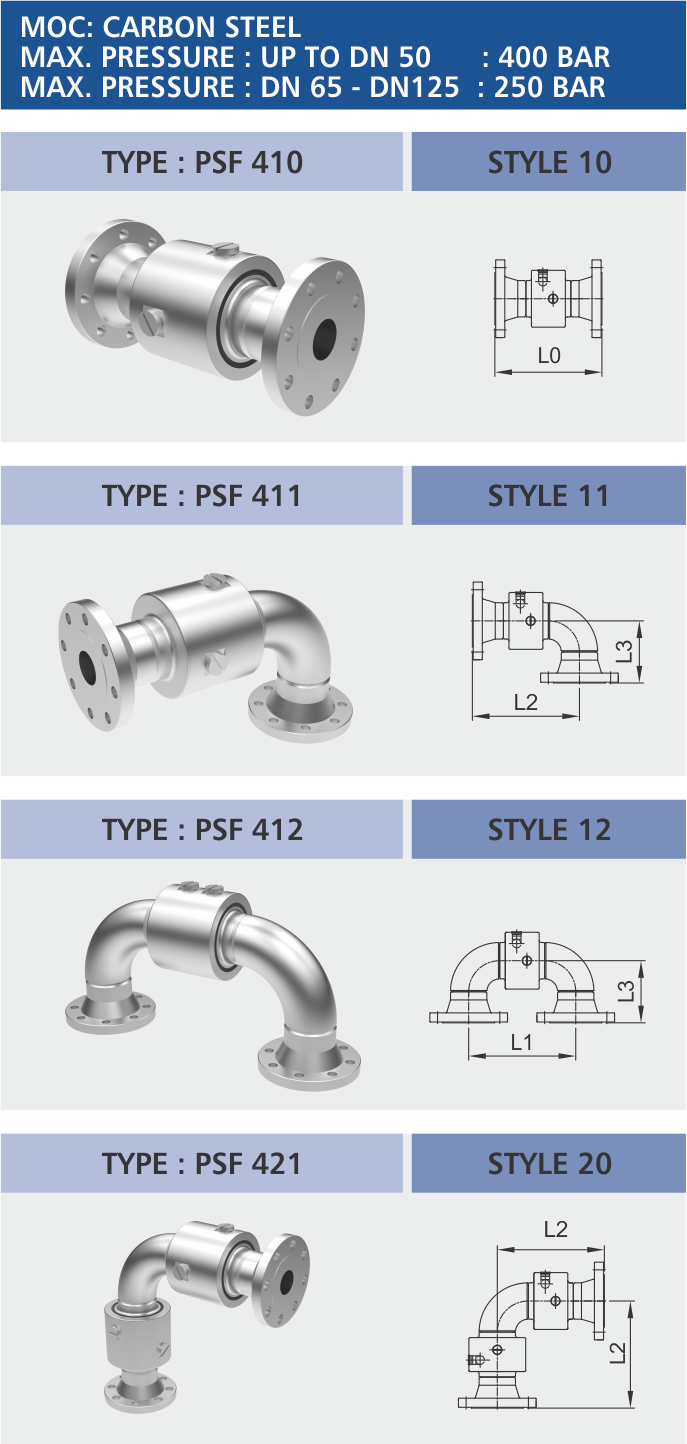

END FITTINGS: FLANGED AT BOTH ENDS AS PER DIN STANDARDS OR WELD END TYPE.

APPLICATIONS: ‘FOURWENTS’ HIGH PRESSURE SWIVEL JOINTS CAN BE USED FOR MANY PROCESSING APPLICATIONS, WASH SYSTEMS, SLOWLY ROTATING SYSTEM SUCH AS LOADING ARMS, ROTATING DRUMS & FILTERS, FIRE MONITORS, HOSE REELS ECT.
