‘FOURWENTS’ / BARCO TYPE SWIVEL JOINTS ARE USED IN

  • PAPH CLEANING DEVICE / SOOT BLOWERS ASSEMBLY IN REGENERATIVE AIR PRE-HEATERS OF STEAM GENERATING BOILERS OF THERMAL POWER PLANTS / COAL-FIRED POWER PLANTS OF.....
  • BHEL
  • L&T
  • APCO-ALSTOM, USA
  • GEECO
  • AND MANY MORE

‘FOURWENTS’ / BARCO TYPE SWIVEL JOINTS ARE USED IN

  • AIR PRE-HEATERS (APH) ARE SHELL AND TUBE-TYPE HEAT EXCHANGERS INSTALLED IN BOILERS TO HEAT THE AIR BEFORE USING IT FOR COMBUSTION. THE MAIN FUNCTION OF AN AIR PRE-HEATER IS TO EXTRACT THE EXCESS HEAT FROM THE FUEL GASES IN A STEAM GENERATION BOILER. AS WE ALL KNOW, COMBUSTION REQUIRES AIR, FUEL, AND FIRE TO OCCUR.
  • ‘FOURWENTS’/ BARCO TYPE SWIVEL JOINTS ARE USED IN PAPH CLEANING DEVICE / SOOT BLOWER ASSEMBLY IN AIR PREHEATERS OF THERMAL POWER PLANT STEAM GENERATING BOILERS.

Swivel Ball Joints

FOR THERMAL POWER PLANT APPLICATIONS

BEST TO USE IN SOOT BLOWERS REGENERATIVE AIR PRE-HEATERS OF
STEAM GENERATING BOILERS OF THERMAL POWER PLANTS / COAL-FIRED POWER PLANTS
OF BHEL, L&T, APCO-ALSTOM,USA, GEECO, AND MANY MORE.

‘BARCO’ TYPE SWIVEL BALL JOINTS THERMAL POWER PLANT APPLICATIONS

  • ‘BARCO’ TYPE SWIVEL BALL JOINTS FOR STEAM SOOT BLOWER IN APH ( AIR PRE-HEATER )
  • ‘BARCO’ TYPE SWIVEL BALL JOINTS FOR STEAM SOOT BLOWING OF AIR PRE-HEATERS IN COAL FIRED
    THERMAL POWER PLANT BOILERS.
  • ‘BARCO’ TYPE SWIVEL BALL JOINTS FOR REGENERATIVE AIR PRE-HEATERS OF STEAM GENERATING BOILERS.
  • ‘BARCO’ TYPE SWIVEL BALL JOINTS FOR PAPH SOOT BLOWER ASSEMBLY.
  • ALSTOM SOOT BLOWER SWIVEL JOINTS.
  • SWIVEL JOINTS FOR SOOT BLOWERS.
  • SWIVEL JOINTS SUITABLE FOR REGENERATIVE AIR PRE-HEATERS, SOOT BLOWERS, STEAM SOOT BLOWING SYSTEMS & PAPH CLEANING DEVICE OF STEAM GENERATING BOILERS IN COAL FIRED THERMAL POWER PLANT APPLICATIONS.
  • SWIVEL JOINTS FOR SOOT BLOWERS & FURNACES.
  • SWIVEL BALL JOINTS FOR PAPH SOOT BLOWERS STEAM LINE AIR PRE HEATERS.
  • SWIVEL BALL JOINTS FOR PAPH CLEANING DEVICE.
  • SWIVEL BALL JOINTS FOR ROTARY AIR PRE-HEATERS
  • SWIVEL BALL JOINTS FOR SOOT BLOWERS IN BOILERS
  • SWIVEL BALL JOINTS FOR SOOT BLOWERS IN BOILERS OF THERMAL POWER STATION.
  • SWIVEL BALL JOINTS SUITABLE FOR GE (GENERAL ELECTRIC ) SOOT BLOWERS SYSTEMS.
  • SWIVEL BALL JOINTS SUITABLE FOR L&T HOWDEN REGENERATIVE AIR PRE-HEATERS.
  • FOURWENTS / BARCO TYPE SWIVEL / BALL JOINTS FOR AIR PRE-HEATERS IN THERMAL POWER PLANTS STEAM BOILERS.
  • FOURWENTS / BARCO TYPE SWIVEL / BALL JOINTS FOR L&T REGENERATIVE AIR PRE-HEATERS.
  • FOURWENTS / BARCO TYPE AIR PRE-HEATERS SPARE SWIVEL JOINTS USE IN
    STEAM GENERATION IN THERMAL POWER STATION.
  • FOURWENTS / BARCO TYPE SWIVEL JOINTS ON SOOT BLOWING OF AIR PRE-HEATERS IN COAL FIRED POWER PLANT BLOWERS.

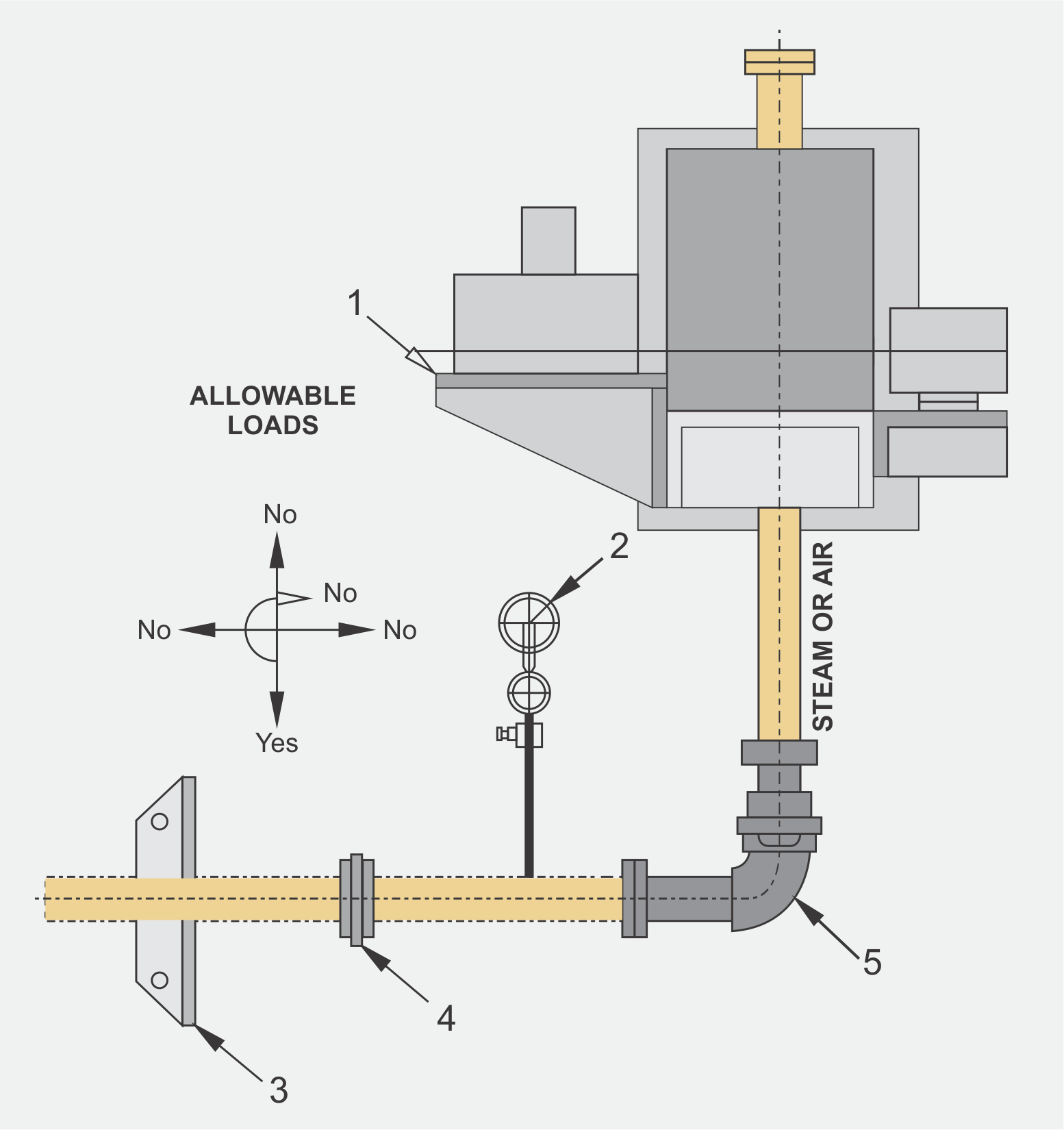

‘FOURWENTS’ (BARCO TYPE) SWIVEL BALL JOINT-STRAIGHT INSTALLATION IN
SOOT BLOWER ASSEMBLY OF AIR PREHEATERS.

Swivel Joint NS & NSS Series

FOURWENTS ( BARCO TYPE )

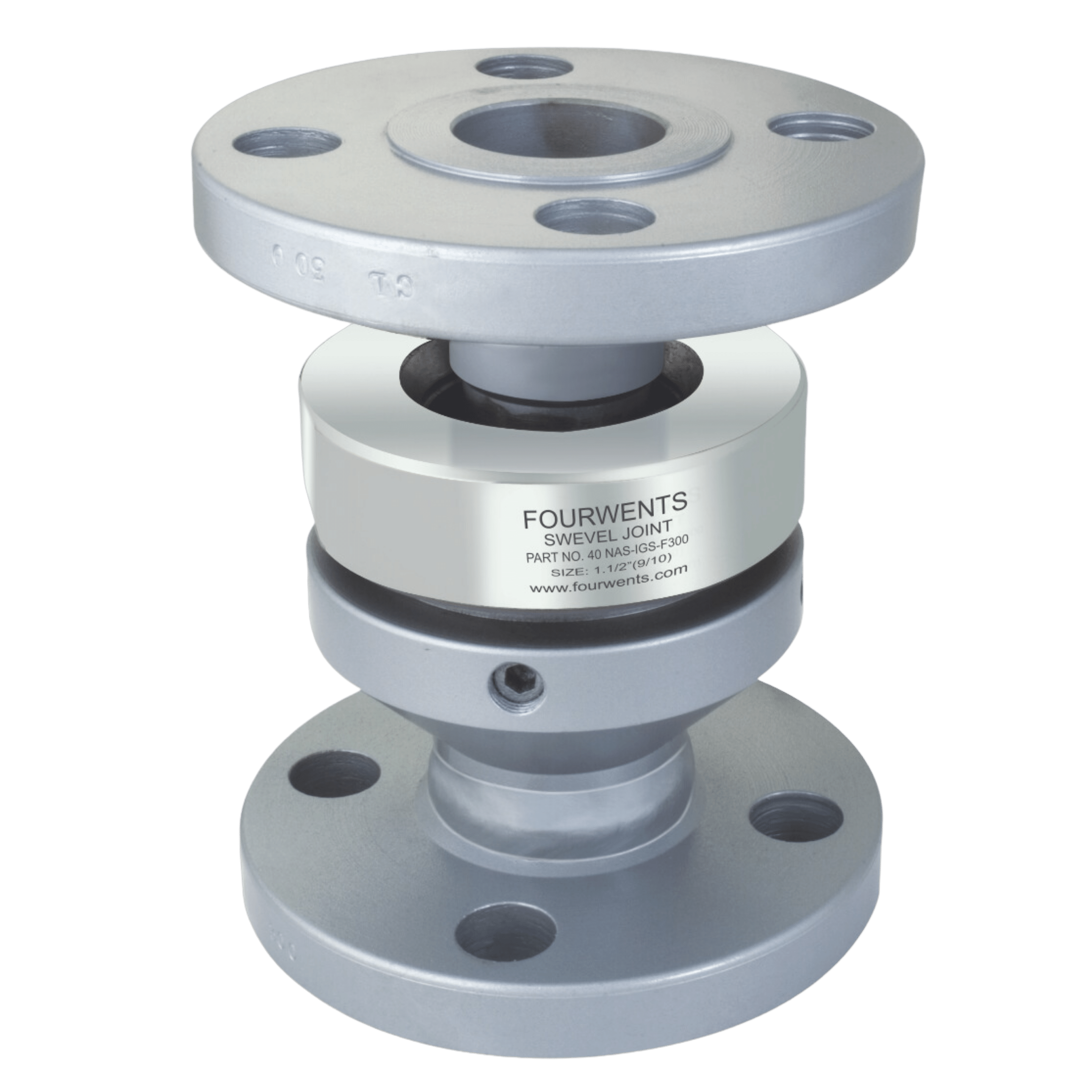

SWIVEL BALL JOINT - STRAIGHT

  • Cleaning device assembly
  • Swivel joint by air preheater manufacturer
  • Reduce side loads and axial loads on the swivel joint by using a support and sliding support
  • Provided by the Manufacturer Orifice Plates, Flanges, Gaskets, and Bolts for the Air Preheater
  • Support to reduce axial compression loads and side loads on the swivel joint.
  • The syphon, gauge, and gauge valve are provided by the air preheater manufacturer.

ONLY AXIAL MOVEMENT AWAY FROM THE SWIVEL JOINT IS PERMITTED; PIPE ANCHORS, EXPANSION JOINTS, AND ALIGNMENT GUIDES MUST BE PLACED PROPERLY. THE MOVEMENT THAT ISN'T TOWARD THE SWIVEL JOINT WILL PUT A STRAIN ON IT AND RESULT IN LEAKING.

Swivel Joint NS and NSS Series
EQ. TO BARCO
MODEL No.: BA-306-90-1146
APCO PART NO.: P-7072

COMPLETE ASSEMBLY

  • Equivalent to APCO part no: P-7063
  • ‘FOURWENTS’ Part No: 40 NSS - IGS - F300
  • ‘FOURWENTS’ Drawing No: 512-C-007 (2)

FOURWENTS ( BARCO TYPE )
SWIVEL BALL JOINT - STRAIGHT

SUITABLE FOR AIR PRE-HEATERS OF STEAM GENERATING BOILERS
SUITABLE FOR USED IN AIR & STEAM

SPECIAL DESIGN FEATURES

  • Straight through self aligning swivel joints.
  • Special carpenter steel body / casing assembly.
  • Special designed spring and spring seat.
  • Special bearing suitable for temperature up to 950° F
  • Ball joint v/s Bearing Faces are of micro lapped.
  • Complete Assembly- Ready for use with injectable Graphite sealing.
  • Suitable for Soot Blowers of Air Pre-Heaters in Steam Boilers.
DESIGN DATA
Size 1½” class # 300 Flanged
Media AIR or STEAM
Max. Pressure 300 PSI
Max. Temperature 900° F

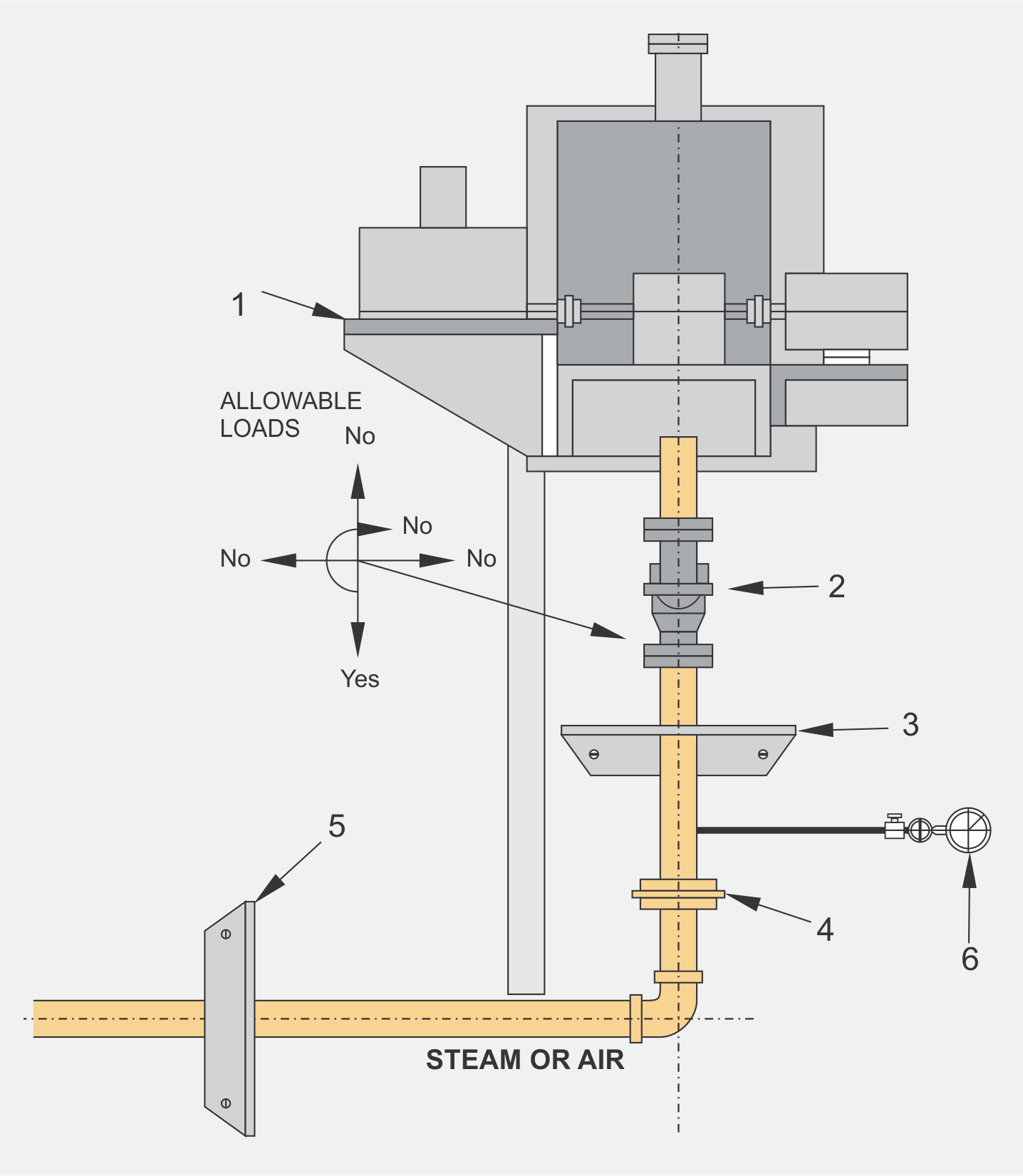

‘FOURWENTS’ (BARCO TYPE) SWIVEL BALL JOINT-90° INSTALLATION IN
SOOT BLOWER ASSEMBLY OF AIR PREHEATERS.

FOURWENTS ( BARCO TYPE )

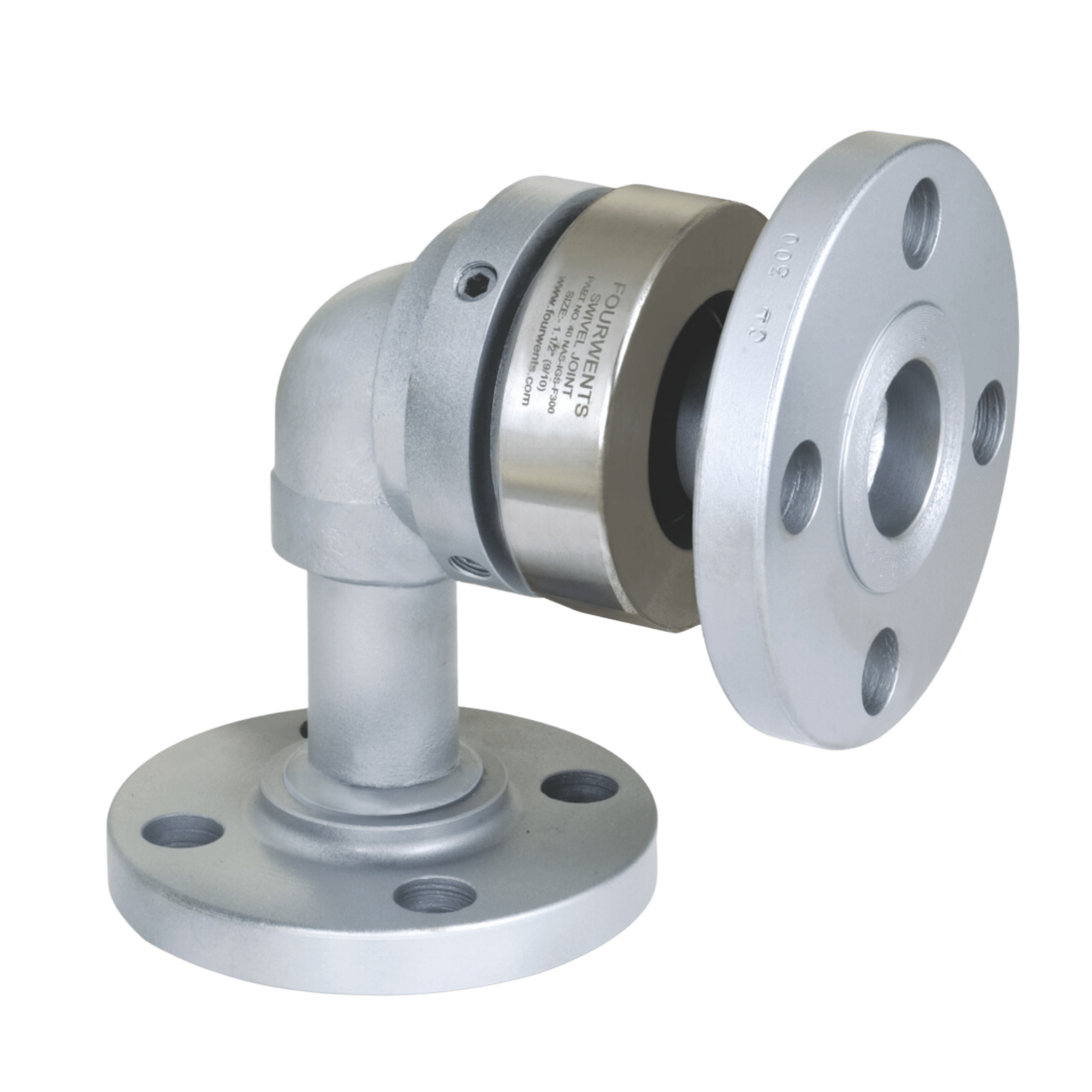

SWIVEL BALL JOINT - 90°

  • Cleaning device assembly
  • The syphon, gauge, and gauge valve are provided by the air preheater manufacturer
  • Support to reduce axial compression loads and side loads on the swivel joint.
  • Provided by the Manufacturer Orice Plates, Flanges, Gaskets, and Bolts for the Air Preheater
  • Swivel Joint by Air preheater manufacturer.
Swivel Joint NS & NSS Series

ONLY AXIAL MOVEMENT AWAY FROM THE SWIVEL JOINT IS PERMITTED; PIPE ANCHORS, EXPANSION JOINTS, AND ALIGNMENT GUIDES MUST BE PLACED PROPERLY. THE MOVEMENT THAT ISN'T TOWARD THE SWIVEL JOINT WILL PUT A STRAIN ON IT AND RESULT IN LEAKING.

FOURWENTS ( BARCO TYPE )
SWIVEL BALL JOINT - 90°

SUITABLE FOR AIR PRE-HEATERS OF STEAM GENERATING BOILERS
SUITABLE FOR USED IN AIR & STEAM

SPECIAL DESIGN FEATURES

  • 90° Self aligning swivel joints.
  • Special carpenter steel body / casing assembly.
  • Special designed spring and spring seat.
  • Special bearing suitable for temperature up to 950° F
  • Ball joint v/s Bearing Faces are of micro lapped.
  • Complete Assembly- Ready for use with injectable Graphite sealing.
  • Suitable for Soot Blowers of Air PreHeaters in Steam Boilers.
DESIGN DATA
Size 1½” class # 300 Flanged.
Media AIR or STEAM
Max. Pressure 300 PSI
Max. Temperature 900° F
Swivel Joint NS and NSS Series
EQ. TO BARCO
MODEL No.: BA-306-90-1146
APCO PART NO.: P-7072

COMPLETE ASSEMBLY

  • Equivalent to APCO part no: P-7072
  • ‘FOURWENTS’ Part No: 40 NAS - IGS - F300
  • ‘FOURWENTS’ Drawing No: 512-C-006 (2)
