FLEX / FLEXI-BALL & ROTA / ROTARY-BALL TYPE BALL JOINTS APPLICATIONS

  • ‘FOURWENTS’ FLEX & ROTA BALL JOINTS FOR OIL FIELD STEAM INJECTIONS.
  • ‘FOURWENTS’ FLEX & ROTA BALL FOR STEAM ASSISTED GRAVITY DRAINAGE OR CYCLIC STEAM STIMULATION BASED HEAVY OIL PRODUCTION.
  • ‘FOURWENTS’ FLEX & ROTA BALL JOINTS FOR PROVIDING PIPING FLEXIBILITY
  • BALL JOINTS FOR HIGH PRESSURE STEAM EMULSION FOR OIL WELL BLOCK FOR OIL & GAS INDUSTRIES.
  • BALL JOINTS COMMONLY USED IN STEAM INJECTION PIPING OF SECONDARY RECOVERY SYSTEMS IN OIL FIELD.
  • BALL JOINTS FOR OIL FIELD STEAM INJECTION DESIGNED TO ABSORB WELL HEAD GROWTH FOR STEAM INJECTION WELLS IN OIL FIELDS.
  • OIL EXTRACTION SYSTEMS USING THERMAL PROCESSES ( STEAM INJECTION ) SUCH AS CYCLIC SYSTEMS.
  • STEAM ASSISTED GRAVITY DRAINAGE (SAGD) SYSTEMS.
  • STEAM PIPING SYSTEMS IN OIL & GAS INDUSTRIES & THERMAL POWER PLANTS.
  • FOR CENTRAL HEATING PLANTS & STORAGE TANKS.
  • FOR SOLAR PANEL ROTATION IN SOLAR POWER PARABOLIC THROUGH SYSTEMS.
  • HIGH TEMPERATURE PIPING SYSTEMS.
  • THERMAL / STEAM INJECTIONS OF OIL WELL HEADS.
  • MARINE & OTHER LOADING-UNLOADING APPLICATIONS.
  • PRE-HEATERS OF STEAM GENERATING BOILERS.
  • FREQUENTLY USED TO COMPENSATE FOR RISER EXPANSION ON OIL FIELD OIL-WELL-HEADS.
  • ‘FOURWENTS’ FLEX BALL JOINTS ARE USED TO COMPENSATE FOR THE THERMAL EXPANSION OF STEAM INJECTION WELLS IN OIL FIELD.
  • ‘FOURWENTS’ FLEX & ROTA BALL JOINTS FOR THERMAL OIL EXTRACTION PROCESS
  • ‘FOURWENTS’ FLEX & ROTA BALL JOINTS USED IN CSS (CYCLIC STEAM STIMULATION)
  • ‘FOURWENTS’ FLEX & ROTA BALL JOINTS USED IN SAP (SOLVENT AIDED PROCESS)
  • ‘FOURWENTS’ FLEX & ROTA BALL JOINTS USED IN THERMAL EXPANSION IN PIPING SYSTEMS.
  • ‘FOURWENTS’ FLEX & ROTA BALL JOINTS USED IN SOLAR ENERGY PIPING SYSTEMS.
  • ‘FOURWENTS’ FLEX & ROTA BALL JOINTS / SWIVEL JOINTS USED IN MARINE LOADING PIPING SYSTEMS.
  • ‘FOURWENTS’ FLEX & ROTA BALL JOINTS / SWIVEL JOINTS USED IN PETROCHEMICALS AND REFINING RELIEF OF PIPE STRESS DUE TO THERMAL EXPANSIONS.
Swivel Joint N Series Specific

TYPE: FLEXI-BJ-001

Size: 1” to 24” ASME 2500#

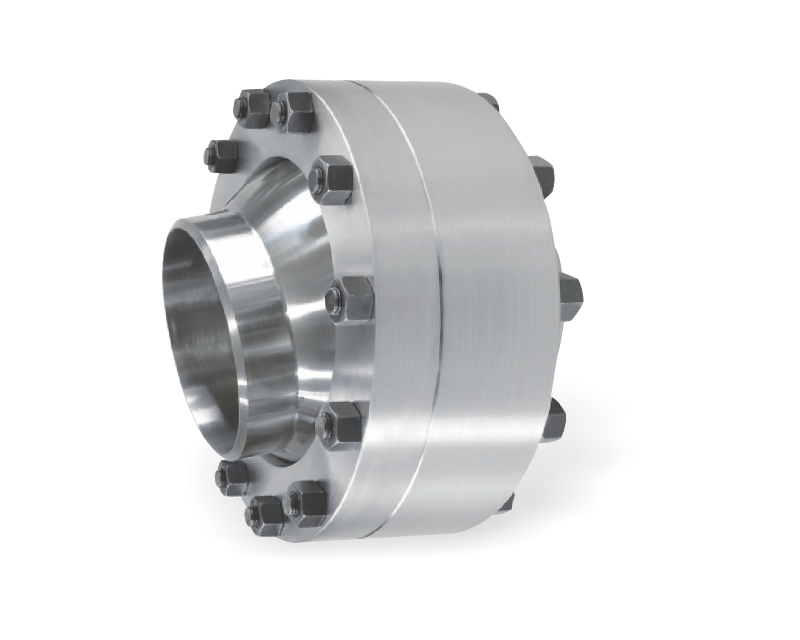

FLEXI-BALL TYPE BALL JOINT (FLEXI-BJ-001)

OIL EXTRACTION SYSTEMS USING
THERMAL PROCESSES SUCH AS CYCLIC STEAM

  • Robust, lightweight & Compact design machined from Near-Net Forging.
  • 360° of rotational freedom and 30° of angular exibility.
  • Superior chrome plated ball for smoother performance.
  • Separate packing for compression.
  • Field adjustable packing compression screw for low maintenance costs.
  • Available in 1” upto 24”(Inch) for ASME 2500# pressure class & temperature upto 1500°F, in a wide rang of material.

FLEXI-BALL TYPE BALL JOINT (FLEXI-BJ-002)

SUITABLE FOR CENTRAL HEATING PLANTS AND
STORAGE TANKS

  • Ideally suitable for Thermal expansion of steam piping.
  • Suited for tank settlement.
  • 24° of total ex capability.
  • Superior chrome plated ball for smoother performance
  • Latest technology in compression packing for a reliable seal and low maintenance.
  • Available in 8” upto 24”(Inch) for ASME 300# pressure class & temperature upto 1500°F, in a wide rang of material.
Swivel Joint N Series Specific

TYPE: FLEXI-BJ-002

Size: 1” to 24” ASME 1500#
Swivel Joint N Series Specific

TYPE: ROTARY-BJ-003

Size: 1” to 24” ASME 1500#

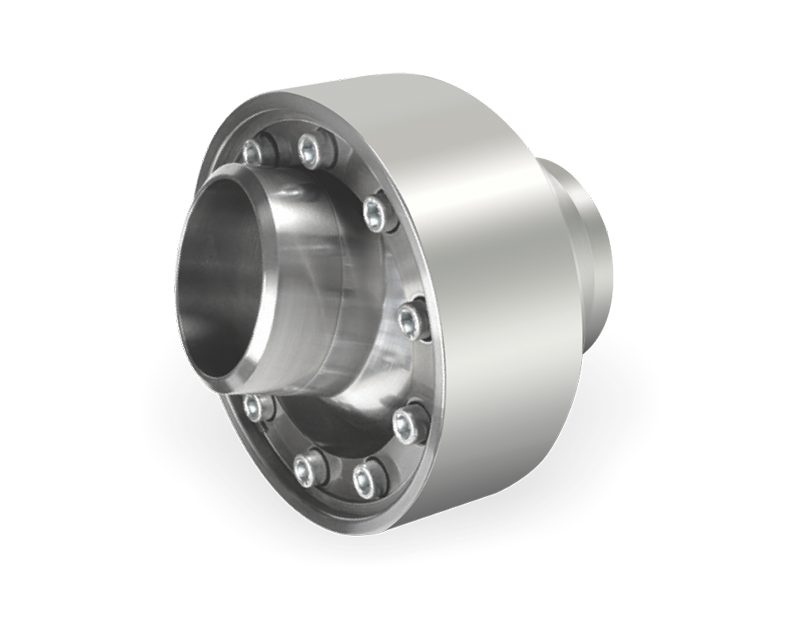

ROTA-BALL BALL JOINT
(ROTO-BJ-003)

OIL EXTRACTION SYSTEMS USING THERMAL
PROCESSES SUCH AS CYCLIC STEAM

  • Robust, lightweight & Compact design machined from Near-Net Forging.
  • 360° of rotational freedom.
  • Hard faced bearing surface reduces friction and wear.
  • High strength packing compression screws.
  • Independent packing compression. Field adjustable packing for lower maintenance costs.
  • Available in 1” upto 24”(Inch) for ASME 1500# pressure class & temperature upto 1500°F, in a wide rang of material.

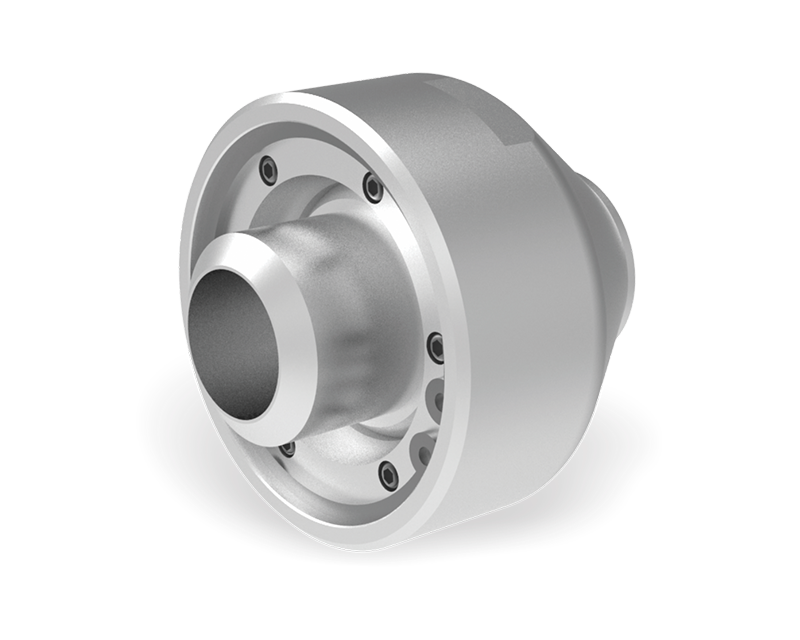

FLEXI-BALL BALL JOINT
(FLEXI-BJ-004)

SUITABLE FOR SOLAR POWER PARABOLIC
THROUGH SYSTEMS

  • Robust, lightweight & Compact design.
  • 360° of rotational freedom and 30° of angular exibility.
  • High integrity seal designed for cyclic conditions.
  • Specially coated bearing surfaces for low operating torque, superior wear and smoother performance.
  • Independent packing compression.
  • Available in 2” upto 4”(Inch) for ASME 600# pressure class & temperature upto 1500°F, in a wide rang of material.
Swivel Joint N Series Specific

TYPE: FLEXI-BJ-004

Size: 1” to 24” ASME 600#

TYPE: FLEXI-BJ-F-005

Size: 8” to 24” ASME 1500#

NO LIMITATIONS ON
END CONNECTION, SIZE OR TYPE.

Available in Flange x Flange
or Flange x butt-weld congurations.

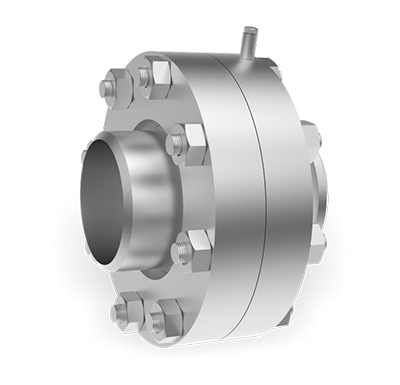

FLANGED FLEXI-BALL TYPE
BALL JOINT ( FLEXI-BJ-F-005)

SUITABLE IN STATIC & DYNAMIC APPLICATIONS

  • Robust, lightweight & Compact design Suitable for close-proximity piping applications.
  • 360° Continuous rotation and a 30° axial pivot with a large total ex angle and innite rotation provide a versatile exible piping solution with continuos sealing during movement.
  • Low-friction movement
  • With eld service injection port. (In-line maintenance...Easy, Quick & Economical)
  • High cycle compatibility
  • Reliable Seal
  • High temperature compatibility.
  • End Connection exibility. ( Available in Buttweld OR Flanged end congurations.
  • Shipped ready for installation. ( No need for assembly or adjustment required.)
  • Available in 8” upto 24”(Inch) for ASME 1500# pressure class & temperature upto 1500°F.

THE RATED PRESSURE FOR FLANGED IS DETERMINED BY THE RATING. CONSULT THE
APPLICABLE CODE FOR THE ALLOWABLE PRESSURE AT THE DESIGN TEMPERATURE.

NOMINAL
SIZE / RANGE
(NPS)

2 1/2" - 6"

8"

10" - 14"

16"

18" - 20"

24"

30"

MAXIMUM
PRESSURE@ 600 F
(psig)

2 1/2" - 6"

8"

10" - 14"

16"

18" - 20"

24"

30"

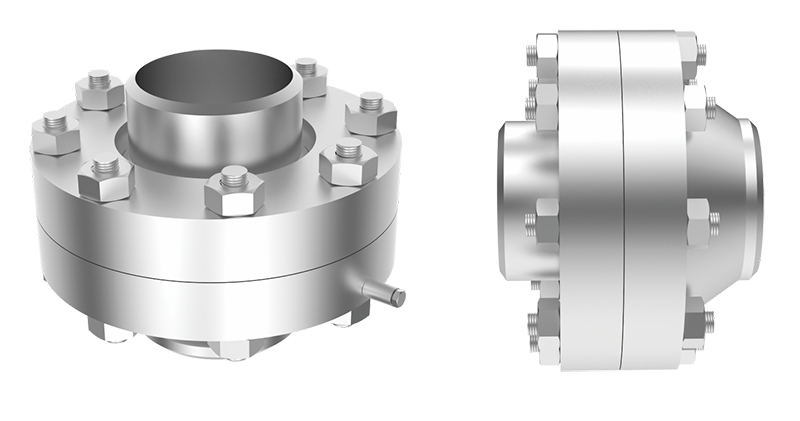

‘FOURWENTS ( ‘N’ TYPE ) FLANGED FLEXI-BALL TYPE BALL JOINTS

‘FOURWENTS ( ‘N’ TYPE )
FLEXI-BALL TYPE BALL JOINTS

THE METHOD TO SAFELY AND RELIABLY HANDLE PIPE MOVEMENT

Fourwents Ball Joints absorb pipe movement in a variety of applications, including steam and hot water pipe expansion, tank and building settlement , seismic isolation , wavemotion compensation on oil platforms and drill ships, solar panel movement, oil well riser expansion, and safety relief valve escape piping.

Swivel Joint N Series Specific

TYPE: ‘N’ TYPE

Size: 2” to 12” NPS ASME 150 to 2500#

FOURWENTS BALL JOINTS OF TYPE N STYLE-1, 2, 3, AND 4-5

Ball Joints of TYPE N Styles-2, 3, and 3-4

Ball joints are made of injected graphite akes with a high carrier, strength bearing Flexible Graphite, which provides lubrication as well as sealing. When Flexible Graphite is combined with a variety of high-strength bearing materials, temperature and pressure ratings are increased.

ASME Class 150 through 2500 Ball Joints

The ASME Class ball joints have been designed to meet the ASME butt weld valve ratings at 100°F. Standard congurations range from 2" to 12" NPS for classes 150 to 2500.

The sealing system combines ductile iron or alloy steel with injected graphite akes and Flexible Graphite, a synthetic oil carrier. If necessary, Flexible Graphite packing can be injected after installation.

ASME Class Ball Joints have been re tested in accordance with API 6FA and are approved for shipboard use by ABS Americas and Lloyd's Register.

Ball Joints OW1500 Style 2 and 3-4

Ow1500 Ball Joints are rated at 1500 PSIG and can withstand temperatures up to 650°F. They are frequently used to compensate for riser expansion on oil eld wellheads, solar panel rotation, and other high-pressure applications.

2" nominal pipe size is available for standard OW1500 ball joints. Refer to ASME Class Ball Joints for other sizes and pressure ratings. Wrought steel is used to make the ball, casing, and retainer. The ball's spherical surface is chrome plated with turn mils of chrome, one mil of hard chrome and one mil of crack-free chrome. A baked-on molybdenum disulde lubricant coating protects the plating.

The sealing system consists of ductile iron inner and outer seals (Number 21) with injected graphite akes and Flexible Graphite as a synthetic oil carrier.

Swivel Joint N Series Specific

Available in a variety of materials, sizes
ranging from 1/2" to 36",
pressure classes up to ASME 4500#, and
temperatures reaching 1500°F.

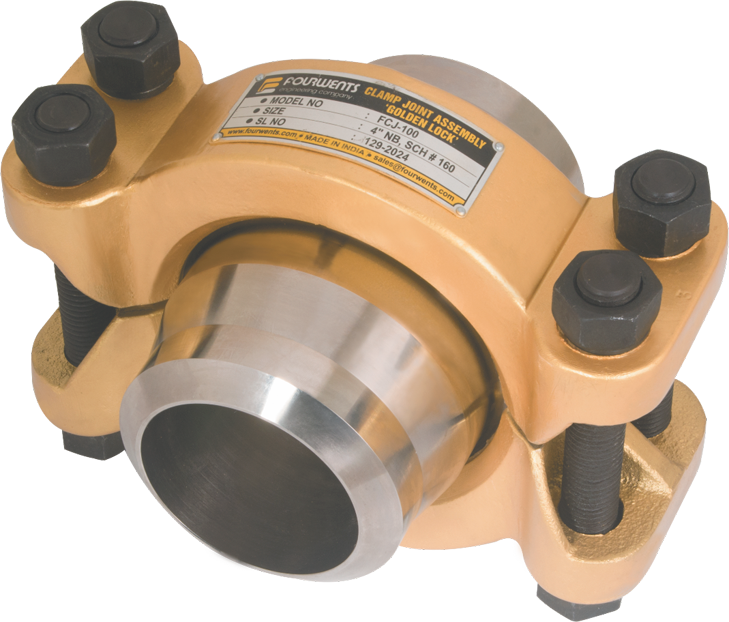

‘FOURWENTS’ GOLDEN-LOCK
CLAMP CONNECTOR / CLAMP JOINT

METAL-TO-METAL CLAMP
CONNECTOR WITH HIGH INTEGRITY

BENEFITS:

  • Smaller & Lighter
  • Efcient Design, reusable seal-rings
  • Simple 4 Bolt Connection
  • Lower bolt torque
  • Decrease Downtime
  • Economical Solution

The “FOURWENTS” Golden-Lock clamp connector is a reliable and small 4-bolt tting that was created as a high-performance substitute for anges.

For use in piping systems needing high integrity seals in applications involving corrosive, erosive, high temperature, high pressure, and cyclic environments, the “FOURWENTS” Golden-Lock clamp connection is a dependable, simple-toassemble, metal-to-metal sealed connector. It is designed to work with compressors, pumps, manifolds, valves, pressure vessel nozzles, and closures.

The clamp joint is constructed using two clamps, two hubs, one seal ring, four studs, and eight nuts.

The hub sealing surface is interfaced with a reusable, zero leakage seal ring to provide high integrity and a strong seal. In order to provide a self-energized seal during operation, the joint conguration makes sure that the seal ring is elastically loaded during assembly.
