PS 40 HEAVY DUTY PIPE SWIVEL JOINTS

DESIGN FEATURES

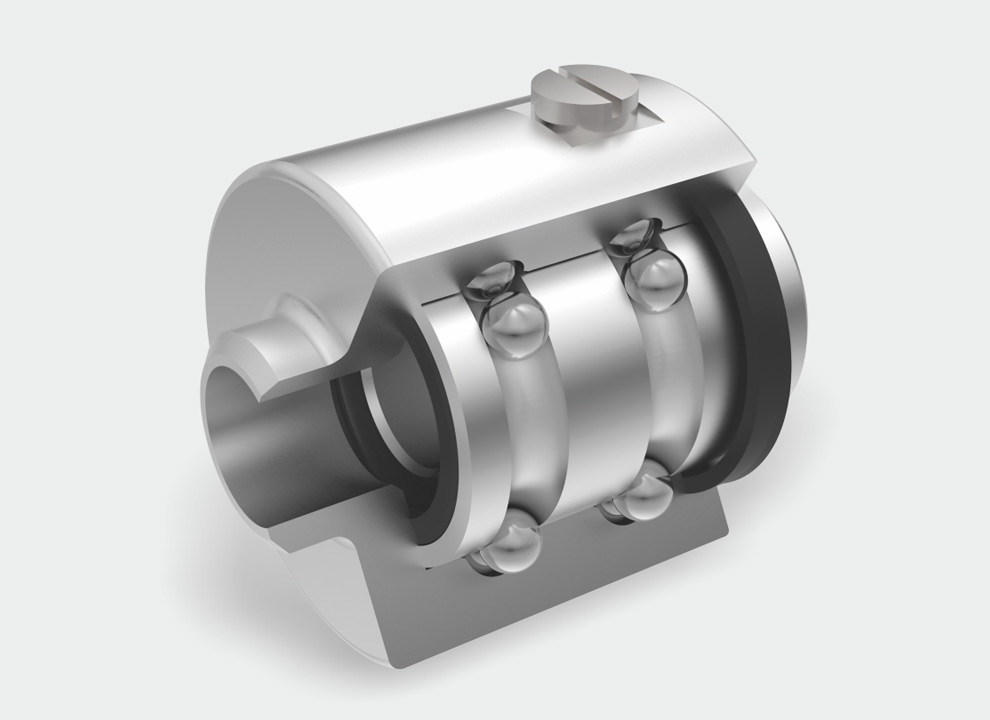

• THE ‘ FOURWENTS’ PS40 TYPE SWIVEL JOINTS ARE BUILT WITH DOUBLE RAW BALL GUIDING TRACK. THEY ARE IDEALLY SUITABLE FOR HEAVY LOAD APPLICATIONS. THE CLEAR BORE HELPS TO REDUCE PRESSURE LOSS.
• SIZE: THE SIZES AVAILABLE FROM 5” TO 16”.
• PRESSURE RATINGS: ‘FOURWENTS’ PS40 TYPE SWIVEL JOINTS ARE PRESSURE RATED UP TO 40 BAR FOR STEEL WHILE UP TO 16 BAR FOR SS.
• TEMPERATURE: 50° C TO 200° C
• MOC BODY & ROTOR: CARBON STEEL / SS 304 / SS 316 / SS 316 L
• SEAL: CFT - SUITABLE FOR 200° C
• END FITTINGS: FLANGED AT BOTH ENDS AS PER DIN STANDARDS OR WELD END TYPE.

APPLICATIONS: ‘FOURWENTS’ HIGH PRESSURE SWIVEL JOINTS CAN BE USED FOR MANY PROCESSING APPLICATIONS, WASH SYSTEMS, SLOWLY ROTATING SYSTEM SUCH AS LOADING ARMS, ROTATING DRUMS & FILTERS, FIRE MONITORS, HOSE REELS ECT.
