Ball Joints and Swivel Joints

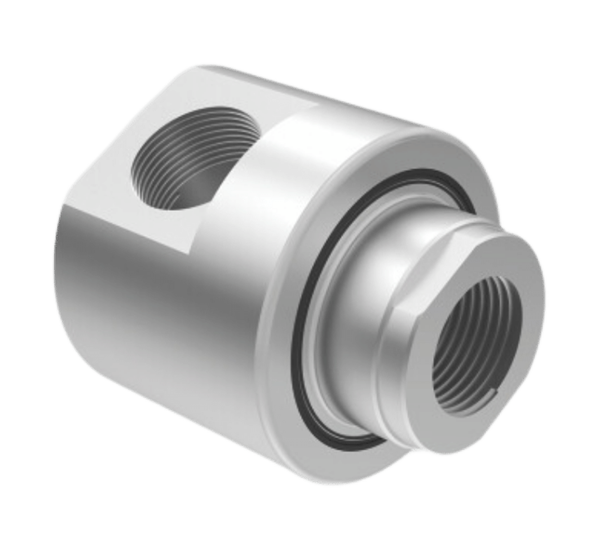

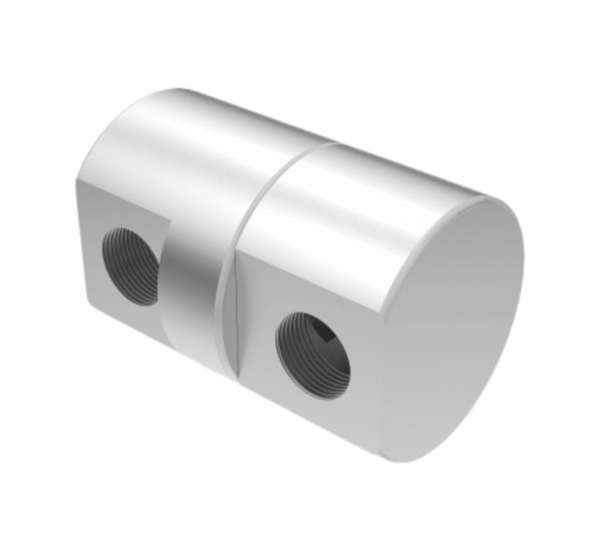

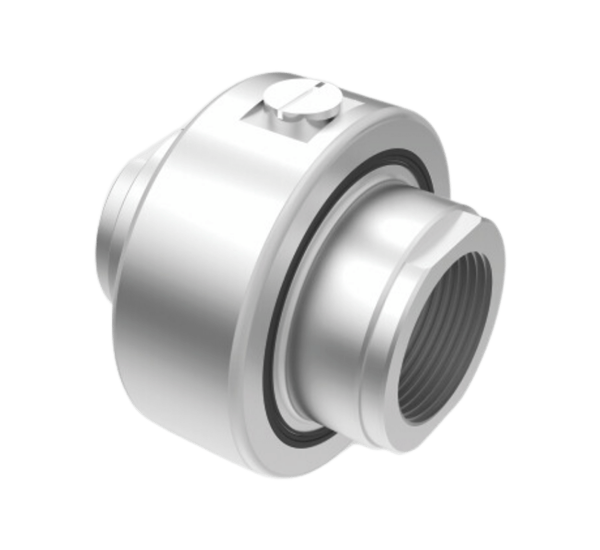

PS 100 HEAVY DUTY PIPE SWIVEL JOINTS

TYPE : PS 100

SIZES: 3/4” TO 4”

OPERATING DATA

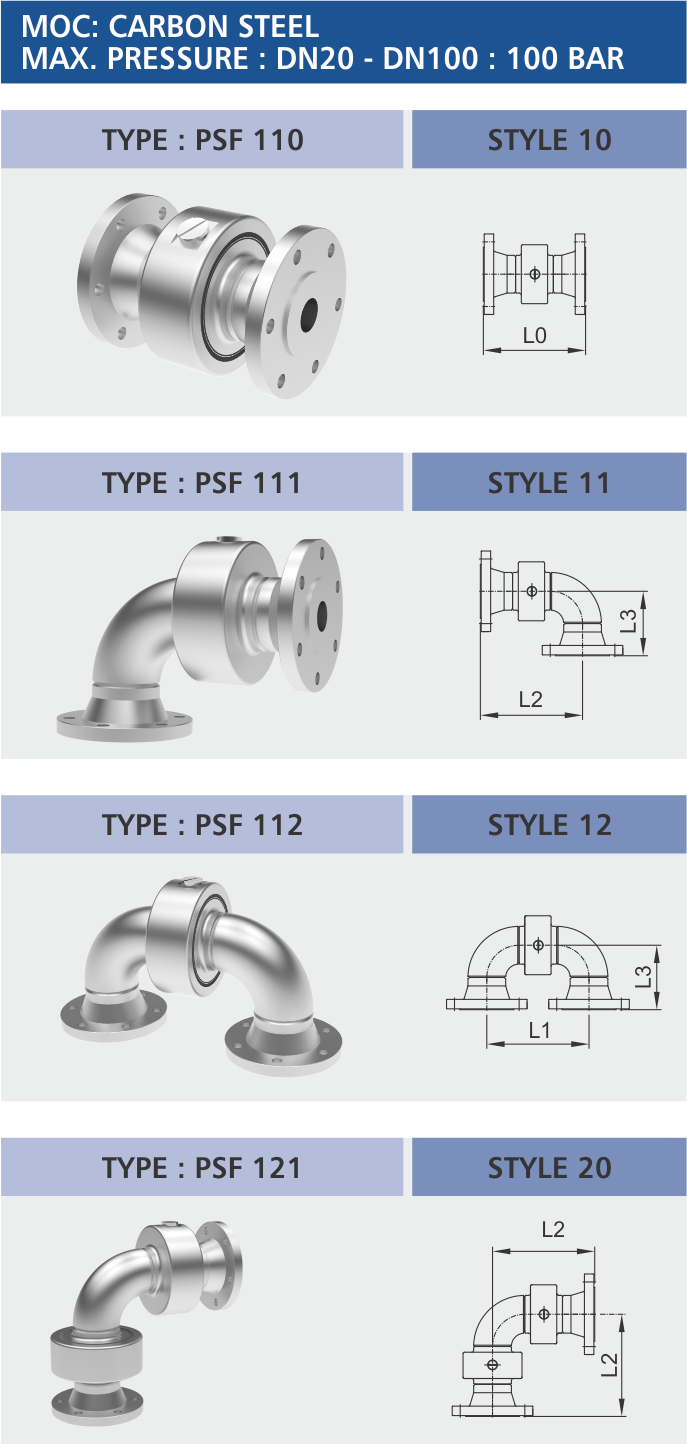

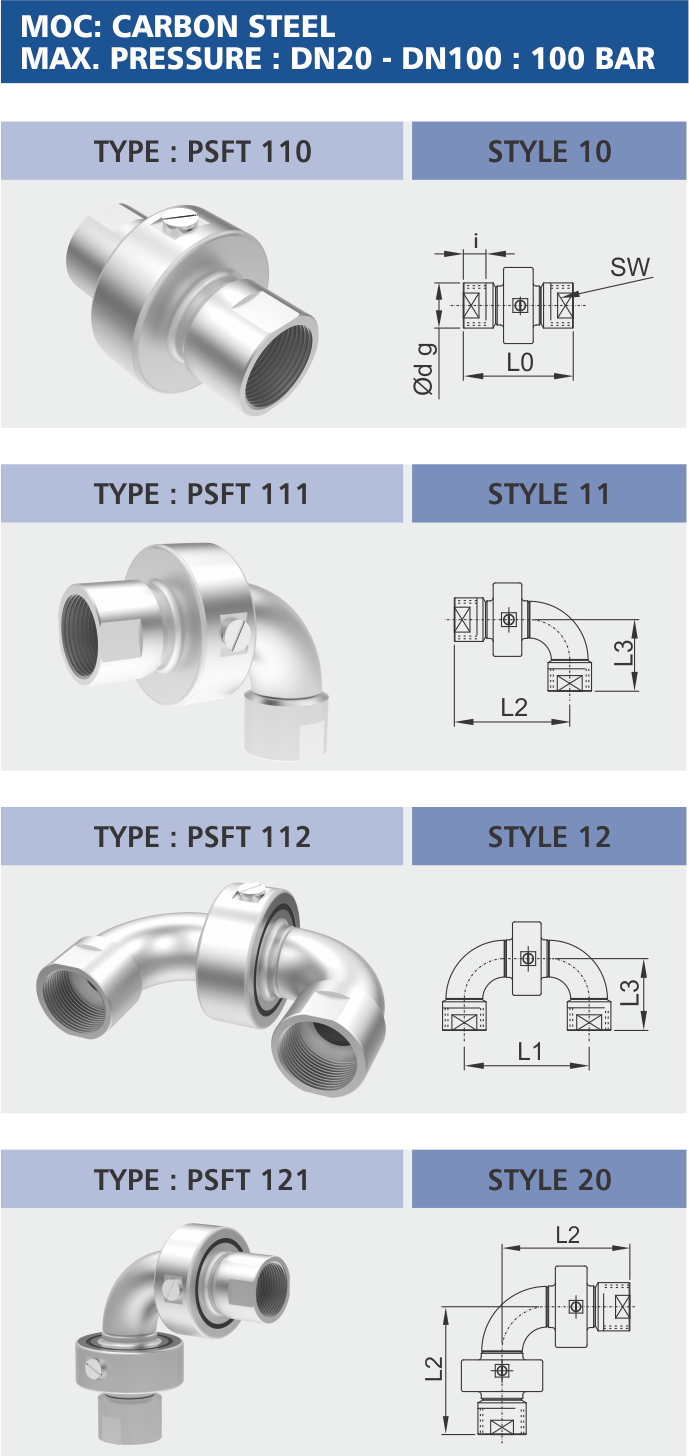

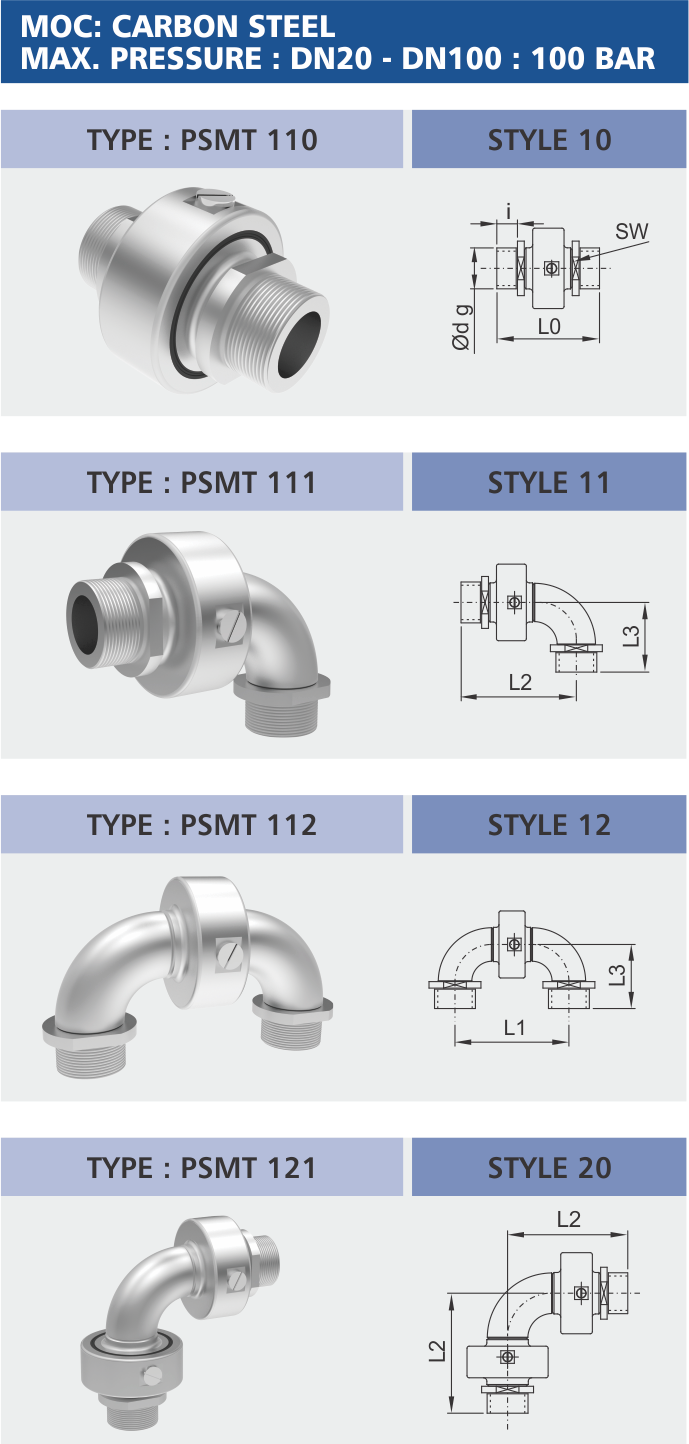

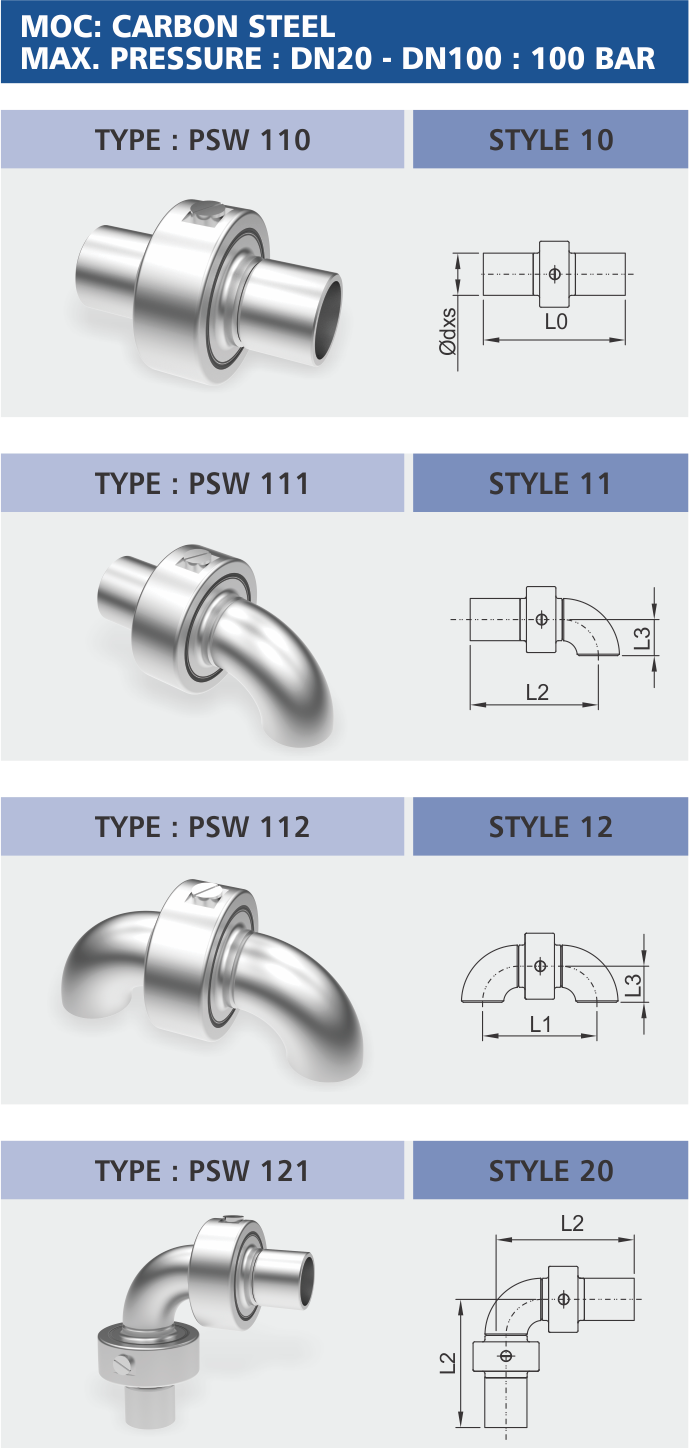

MOC : CARBON STEEL MAX. PRESSURE	DN 20 - DN 100 : 100 BAR

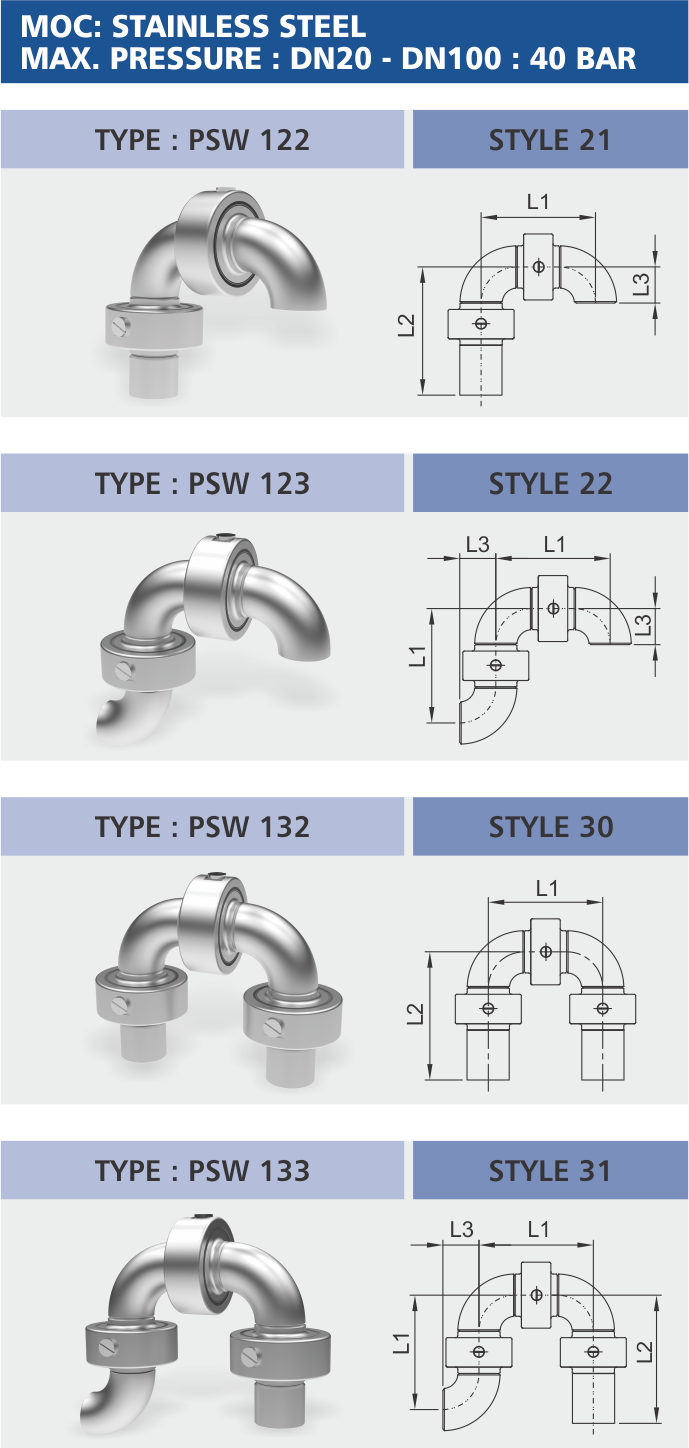

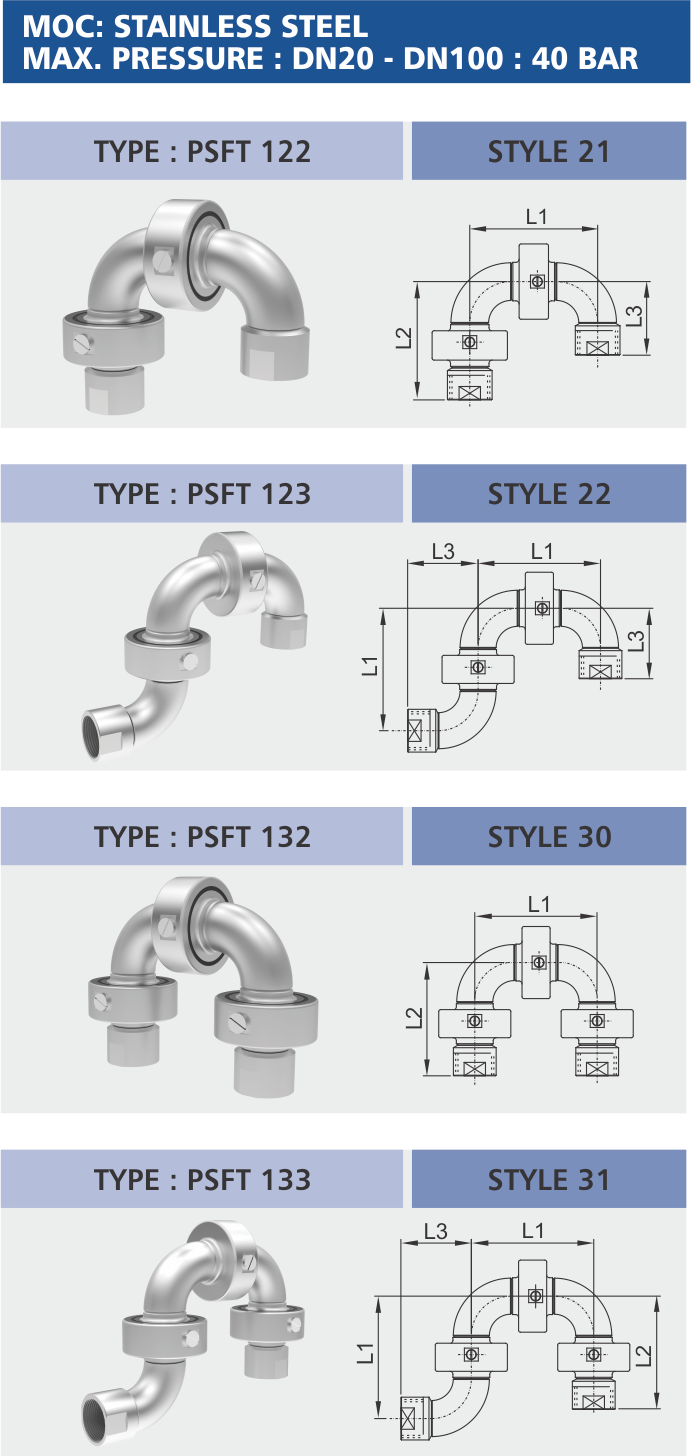

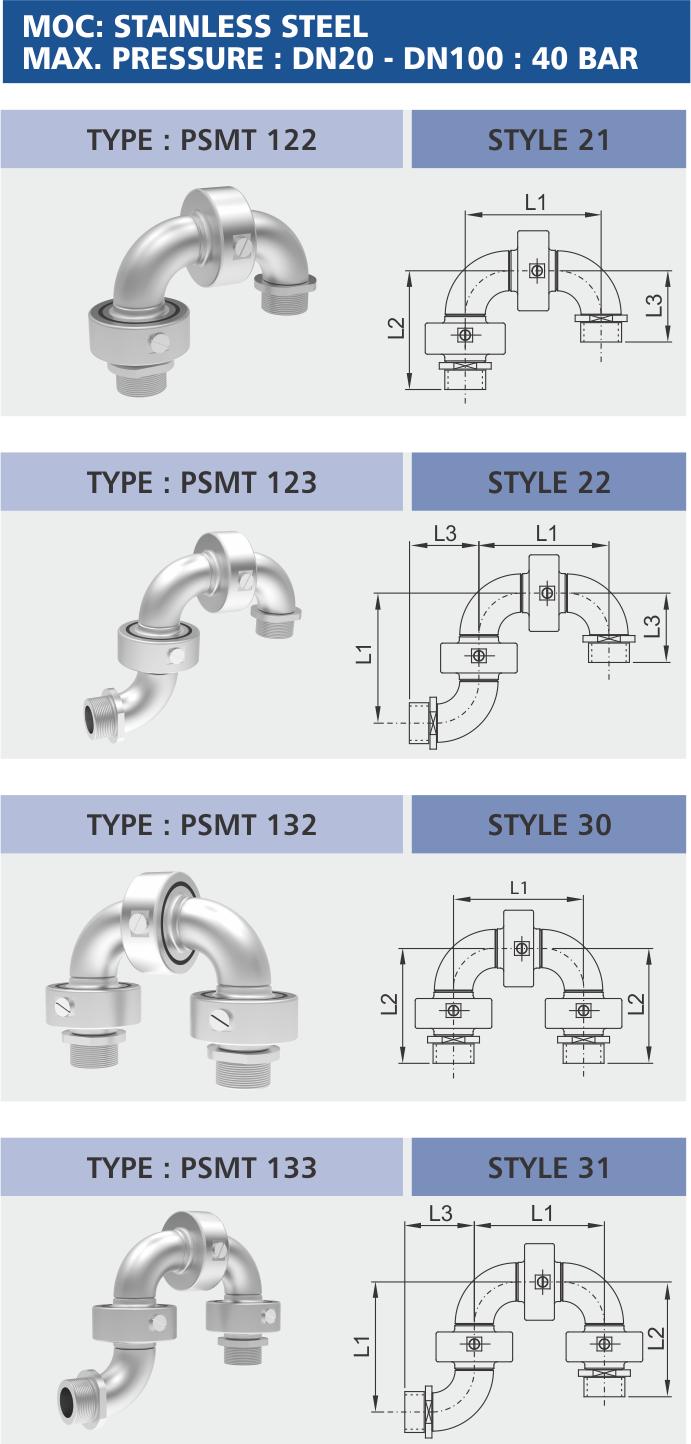

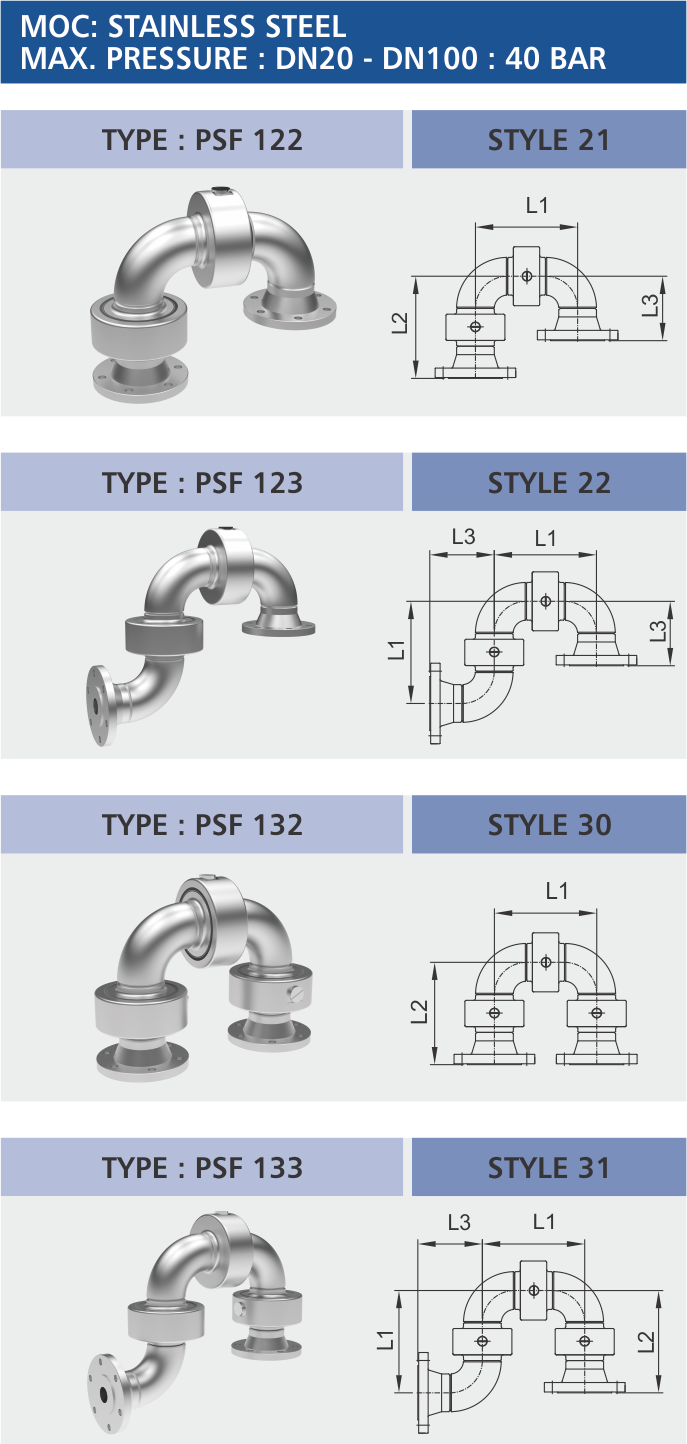

MOC : STAINLESS STEEL MAX. PRESSURE	DN 20 - DN 100 : 40 BAR
MAX. TEMPERATURE	UP TO 200° C

DESIGN FEATURES

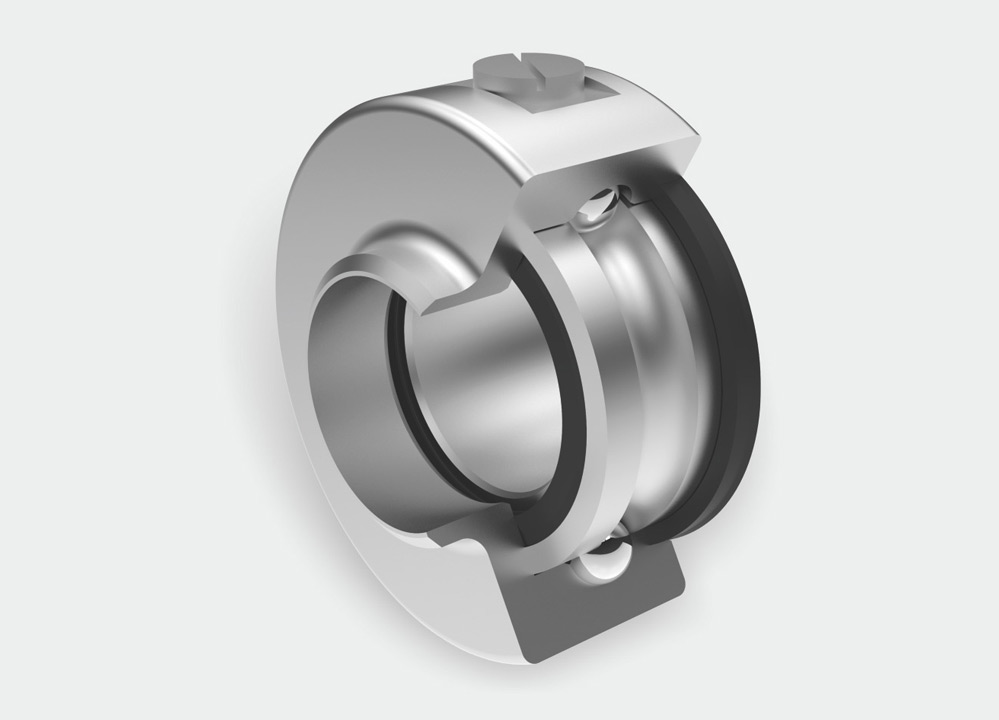

THE ‘ FOURWENTS’ PS100 TYPE SWIVEL JOINTS ARE BUILT WITH SINGLE RAW BALL GUIDING TRACK. THEY ARE IDEALLY SUITABLE FOR HEAVY LOAD APPLICATIONS. THE CLEAR BORE HELPS TO REDUCE PRESSURE LOSS.
SIZE: THE SIZES AVAILABLE FROM 3/4” TO 4”.
PRESSURE RATINGS: ‘FOURWENTS’ PS100 TYPE SWIVEL JOINTS ARE PRESSURE RATED UP TO 100 BAR FOR STEEL, WHILE UPTO 40 BAR FOR S.S.
TEMPERATURE: 200° C
MOC BODY & ROTOR: CARBON STEEL / SS 304 / SS 316 / SS 316 L
SEAL: CFT - SUITABLE FOR 200° C
END FITTINGS: FLANGED AT BOTH ENDS AS PER DIN STANDARDS OR WELD END TYPE.

APPLICATIONS: ‘FOURWENTS’ HIGH PRESSURE SWIVEL JOINTS CAN BE USED FOR MANY PROCESSING APPLICATIONS, WASH SYSTEMS, SLOWLY ROTATING SYSTEM SUCH AS LOADING ARMS, ROTATING DRUMS & FILTERS, FIRE MONITORS, HOSE REELS ETC.
