Fluid Transfer Solutions

‘ N ’ SERIES
SELF ALIGNING SWIVEL JOINTS

SUITABLE FOR RUBBER & TYRE INDUSTRIES,
FOOD PROCESSING PLANTS / INDUSTRIES

Swivel Joint H Series

TYPE: NSS

SIZE: 1/2” TO 1-1/2”

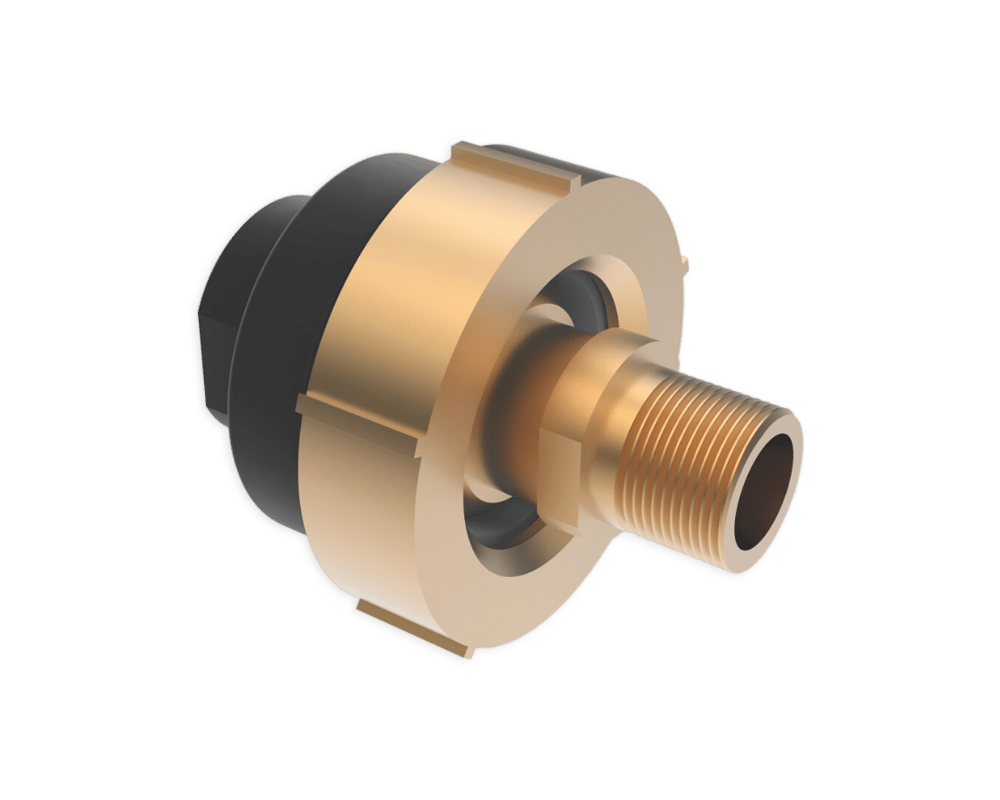

STRAIGHT INLET -
STRAIGHT OUTLET DESIGN

DESIGN FEATURES

  • COMPACT DESIGN. SELF ADJUSTING & SELF LUBRICATING.
  • EASY TO INSTALL.
  • MAINTENANCE FREE SWIVELING JOINT.
  • AVAILABLE IN DIFFERENT MATERIAL OF CONSTRUCTION.
  • AVAILABLE IN BSPT, NPT & SOCKET WELD CONSTRUCTION.
OPERATING DATA
MAX. PRESSURE 30Kg / Cm2
MAX. TEMPERATURE 235° C **

** SUBJECT TO CHANGE ACCORDING TO MATERIAL OF CONSTRUCTION

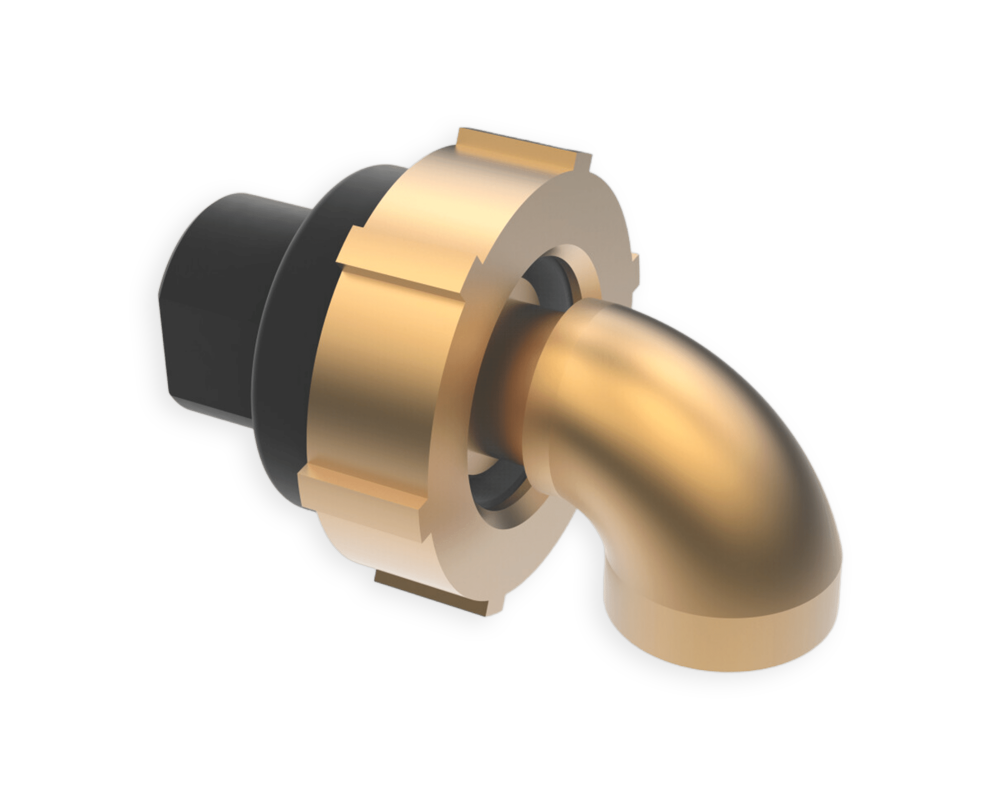

STRAIGHT INLET -
90° OUTLET DESIGN

DESIGN FEATURES

  • COMPACT DESIGN. SELF ADJUSTING & SELF LUBRICATING.
  • EASY TO INSTALL.
  • MAINTENANCE FREE SWIVELING JOINT.
  • AVAILABLE IN DIFFERENT MATERIAL OF CONSTRUCTION.
  • AVAILABLE IN BSPT, NPT & SOCKET WELD CONSTRUCTION.
OPERATING DATA
MAX. PRESSURE 30Kg / Cm2
MAX. TEMPERATURE 235° C **

** SUBJECT TO CHANGE ACCORDING TO MATERIAL OF CONSTRUCTION

Swivel Joint H Series

TYPE: NSA

SIZE: 1/2” TO 1-1/2”
Swivel Joint H Series

TYPE: NAS

SIZE: 1/2” TO 1-1/2”

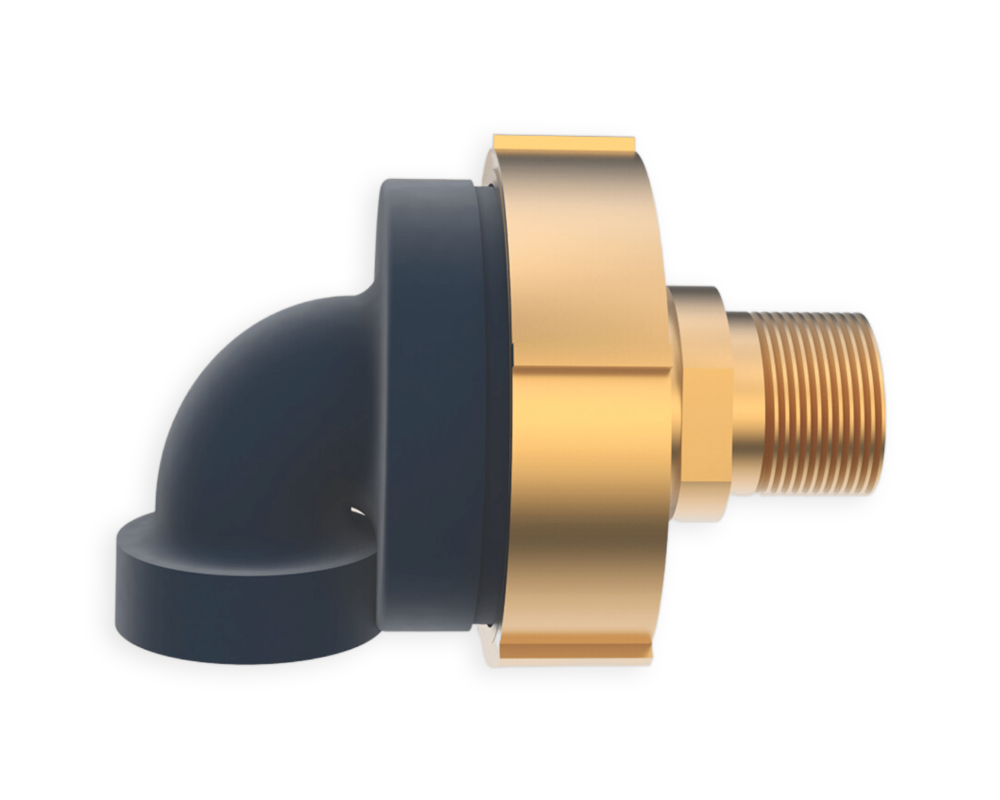

90° INLET -
STRAIGHT OUTLET DESIGN

DESIGN FEATURES

  • COMPACT DESIGN. SELF ADJUSTING & SELF LUBRICATING.
  • EASY TO INSTALL.
  • MAINTENANCE FREE SWIVELING JOINT.
  • AVAILABLE IN DIFFERENT MATERIAL OF CONSTRUCTION.
  • AVAILABLE IN BSPT, NPT & SOCKET WELD CONSTRUCTION.
OPERATING DATA
MAX. PRESSURE 30Kg / Cm2
MAX. TEMPERATURE 235° C **

** SUBJECT TO CHANGE ACCORDING TO MATERIAL OF CONSTRUCTION

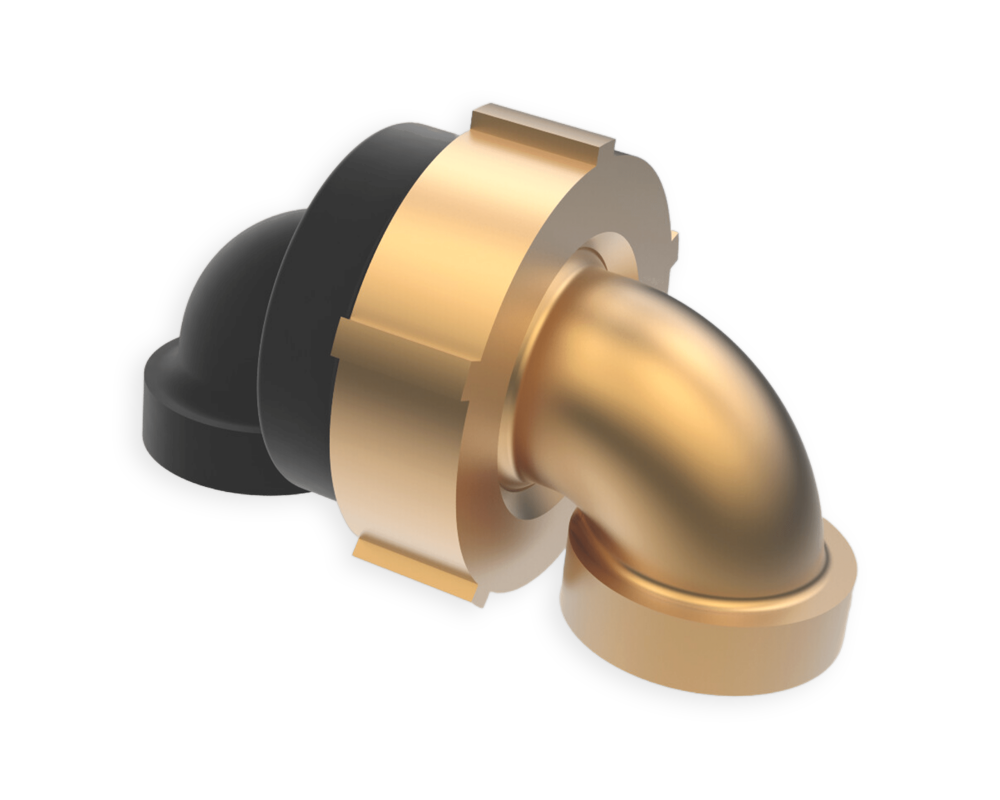

90° INLET - 90° OUTLET DESIGN

DESIGN FEATURES

  • COMPACT DESIGN. SELF ADJUSTING & SELF LUBRICATING.
  • EASY TO INSTALL.
  • MAINTENANCE FREE SWIVELING JOINT.
  • AVAILABLE IN DIFFERENT MATERIAL OF CONSTRUCTION.
  • AVAILABLE IN BSPT, NPT & SOCKET WELD CONSTRUCTION.
OPERATING DATA
MAX. PRESSURE 30Kg / Cm2
MAX. TEMPERATURE 235° C **

** SUBJECT TO CHANGE ACCORDING TO MATERIAL OF CONSTRUCTION

Swivel Joint H Series

TYPE: NAA

SIZE: 1/2” TO 1-1/2”

FOR MORE DETAILS VIEW OUR BROCHURE
