‘ L ’ SERIES SWIVEL JOINTS

SPECIFICALLY MADE FOR APPLICATIONS WHERE
ENVIRONMENT IS CORROSIVE.

‘FOURWENTS’ HIGH PRESSURE SWIVEL JOINTS CAN BE USED FOR MANY PROCESSING APPLICATIONS, WAS SYSTEMS, SLOWLY ROTATING SYSTEM SUCH AS LOADING ARMS, ROTATING DRUMS & FILTERS, FIRE MONITORS, HOSE REELS ECT.

Swivel Joint H Series

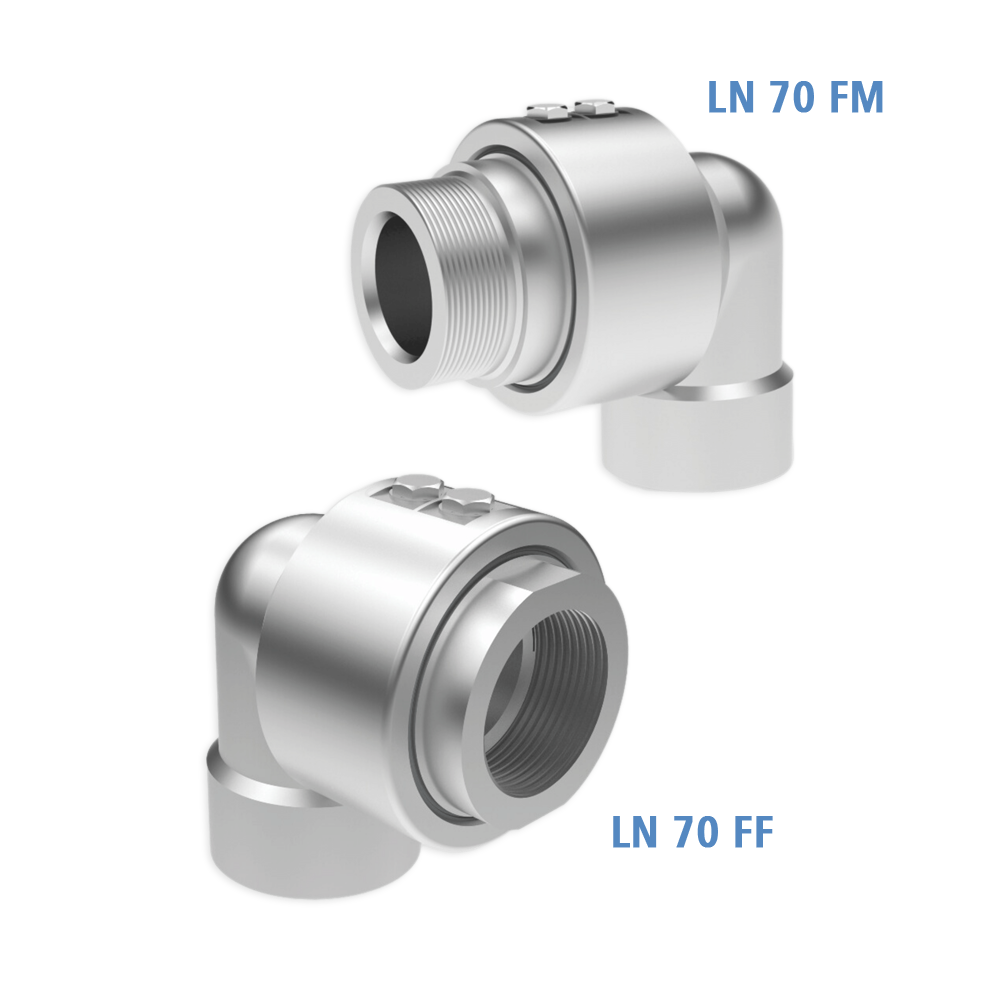

TYPE: LN

SIZE: 1-1/4” TO 2-1/4”
OPERATING DATA
MAX. PRESSURE UP TO 70 BAR
MAX. TEMPERATURE UP TO 200° C
MAX. SPEED UP TO 50 RPM

LOW PRESSURE SWIVEL JOINTS

DESIGN FEATURES

  • THE ‘ FOURWENTS’ L - 70 SERIES SWIVEL JOINTS HAVE BEEN DESIGNED SPECIFICALLY FOR APPLICATIONS WHERE ENVIRONMENT IS CORROSIVE.
  • THE ENTIRE MATERIAL OF CONSTRUCTION IS STAINLESS STEEL 316.
  • THE DESIGN INCORPORATES PAIR OF BALL RACES FOR MORE STABILITY AT LOW PRESSURE.
  • PRESSURE RATINGS: ‘FOURWENTS’ L-70 SERIES SWIVEL JOINTS ARE PRESSURE RATED FOR 70 BAR.
  • TEMPERATURE: UP TO 200° C
  • BODY: SS 316
  • ROTOR: SS 316
  • SEAL: VITON-SEAL IS SUITABLE FOR 200° C
  • END FITTINGS: FEMALE THREADS AT BOTH ENDS

FOR MORE DETAILS VIEW OUR BROCHURE
