‘H’ SERIES SWIVEL JOINTS

SUITABLE FOR HIGH PRESSURE PIPING SYSTEMS

‘FOURWENTS’ HIGH PRESSURE SWIVEL JOINTS CAN BE USED FOR MANY PROCESSING APPLICATIONS, WAS SYSTEMS, SLOWLY ROTATING SYSTEM SUCH AS LOADING ARMS, ROTATING DRUMS & FILTERS, FIRE MONITORS, HOSE REELS ECT.

Swivel Joint H Series

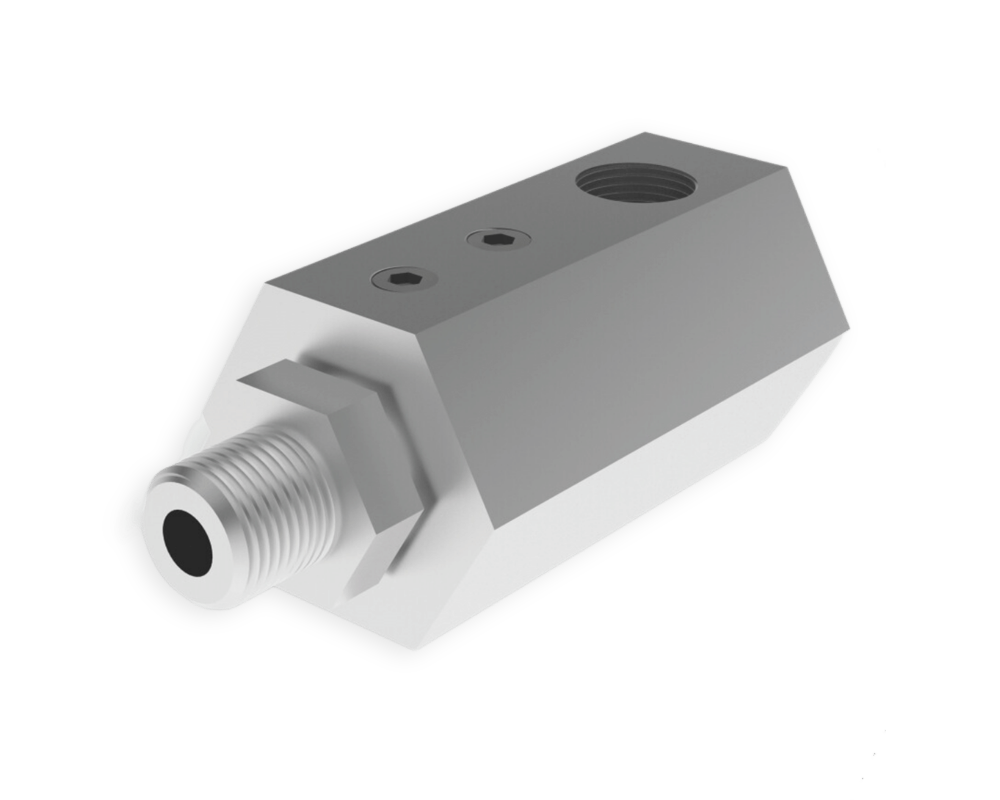

TYPE: NSS ( MODIFIED )

SIZE: 1-1/2”
OPERATING DATA
MAX. PRESSURE UP TO 300 BAR
MAX. TEMPERATURE UP TO 200° C
MAX. SPEED UP TO 50 RPM

HIGH PRESSURE SWIVEL JOINTS

DESIGN FEATURES

  • THE ‘FOURWENTS’ H - 300 SERIES SWIVEL JOINTS HAVE BEEN DESIGNED SPECIFICALLY FOR TRANSFER OF FLUID UNDER HIGH PRESSURE IN THE PIPING SYSTEM.
  • THE ENTIRE LOAD DURING TRANSFER IS TAKEN UP BY BALL OF BEARINGS.
  • ALL METALLURGY IS SUITABLE FOR PRESSURE APPLICATIONS.
  • THE DESIGN RESTRICTS THE SWIVEL SPEED UNDER PRESSURE TO 50 RPM MAXIMUM.
  • PRESSURE RATINGS: ‘FOURWENTS’ H - 300 SERIES SWIVEL JOINTS ARE PRESSURE RATED FOR 300 BAR.
  • TEMPERATURE: UP TO 200° C
  • BODY: CARBON STEEL / ZINC FINISH SURFACE
  • ROTOR: CARBON STEEL.
  • SEAL: VITON-SEAL IS SUITABLE FOR 200° C
  • END FITTINGS: THREADED OR FLANGED AS PER

HIGH PRESSURE SWIVEL JOINTS

DESIGN FEATURES

  • THE ‘ FOURWENTS’ H - 300 SERIES SWIVEL JOINTS HAVE BEEN DESIGNED SPECIFICALLY FOR TRANSFER OF FLUID UNDER HIGH PRESSURE IN THE PIPING SYSTEM.
  • ALL METALLURGY IS SUITABLE FOR PRESSURE APPLICATIONS.
  • THE DESIGN RESTRICTS THE SWIVEL SPEED UNDER PRESSURE TO 50 RPM MAXIMUM.
  • PRESSURE RATINGS: ‘FOURWENTS’ H - 300 SERIES SWIVEL JOINTS ARE PRESSURE RATED FOR 300 BAR.
  • TEMPERATURE: UP TO 200° C
  • BODY: CARBON STEEL / ZINC FINISH SURFACE
  • ROTOR: CARBON STEEL.
  • SEAL: VITON-SEAL IS SUITABLE FOR 200° C
  • END FITTINGS: THREADED OR FLANGED AS PER REQUIREMENT.
Swivel Joint H Series

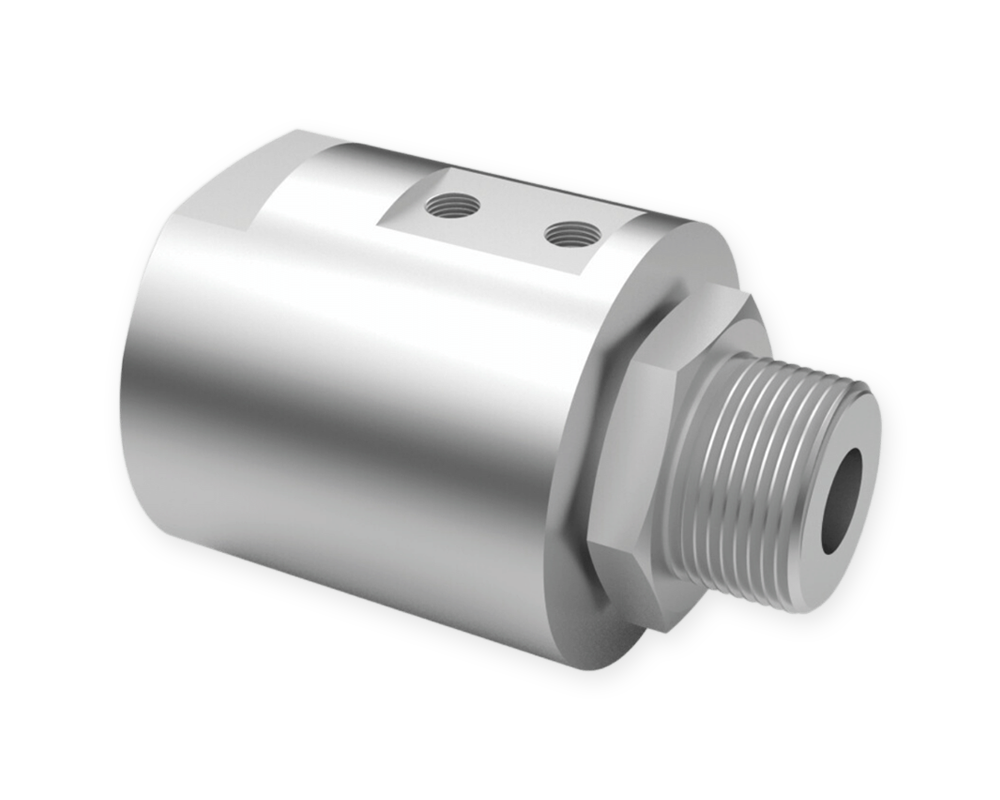

TYPE: HN

SIZE: 1/4” TO 2”
OPERATING DATA
MAX. PRESSURE UP TO 300 BAR
MAX. TEMPERATURE UP TO 200° C
MAX. SPEED UP TO 50 RPM
Swivel Joint H Series

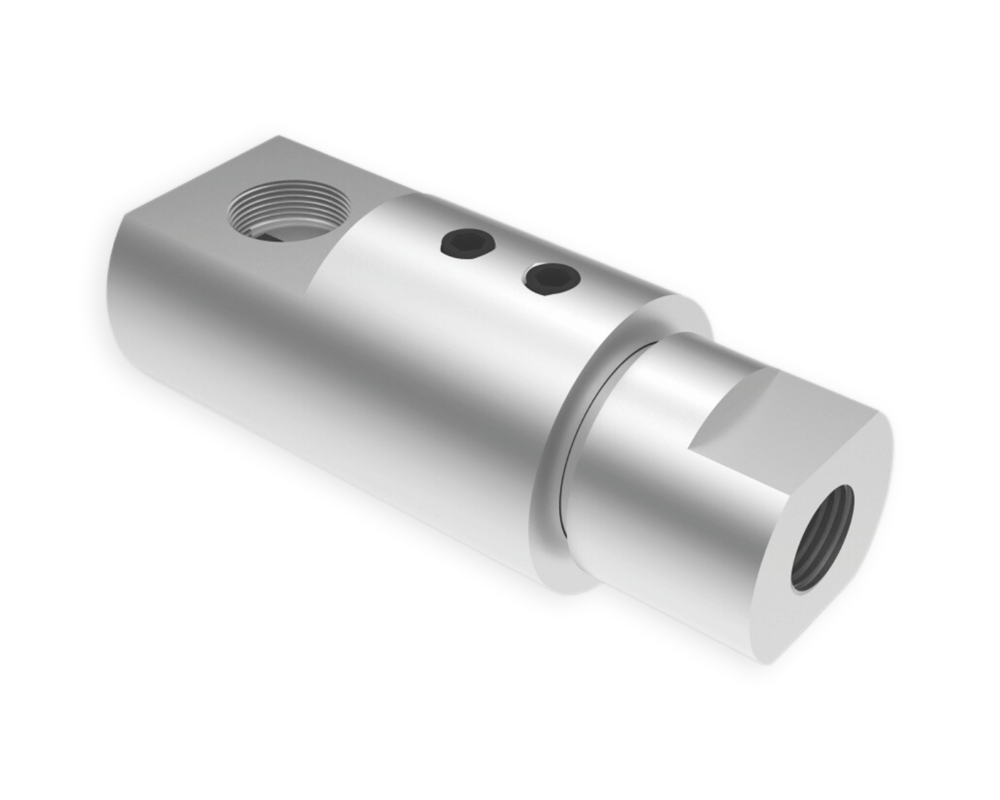

TYPE: HS

SIZE: 1/4” TO 1”
OPERATING DATA
MAX. PRESSURE UP TO 300 BAR
MAX. TEMPERATURE UP TO 200° C
MAX. SPEED UP TO 50 RPM

HIGH PRESSURE SWIVEL JOINTS

DESIGN FEATURES

  • THE ‘ FOURWENTS’ H - 400 SERIES SWIVEL JOINTS HAVE BEEN DESIGNED SPECIFICALLY FOR APPLICATIONS WHERE ENVIRONMENT IS CORROSIVE.
  • THE ENTIRE MATERIAL OF CONSTRUCTION IS STAINLESS STEEL 316.
  • THE DESIGN INCORPORATES PAIR OF BALL RACES FOR MORE STABILITY AT HIGH PRESSURE.
  • THE DESIGN RESTRICTS THE SWIVEL SPEED UNDER PRESSURE TO 50 RPM MAXIMUM.
  • PRESSURE RATINGS: ‘FOURWENTS’ H - 400 SERIES SWIVEL JOINTS ARE PRESSURE RATED FOR 400 BAR.
  • TEMPERATURE: UP TO 200° C
  • BODY: SS 316
  • ROTOR: SS 316
  • SEAL: VITON-SEAL IS SUITABLE FOR 200° C
  • END FITTINGS: FEMALE THREADS AT BOTH ENDS

HIGH PRESSURE SWIVEL JOINTS

DESIGN FEATURES

  • THE ‘ FOURWENTS’ H - 400 SERIES SWIVEL JOINTS HAVE BEEN DESIGNED SPECIFICALLY FOR APPLICATIONS WHERE ENVIRONMENT IS CORROSIVE.
  • THE ENTIRE MATERIAL OF CONSTRUCTION IS STAINLESS STEEL 316.
  • THE DESIGN INCORPORATES PAIR OF BALL RACES FOR MORE STABILITY AT HIGH PRESSURE.
  • THE DESIGN RESTRICTS THE SWIVEL SPEED UNDER PRESSURE TO 50 RPM MAXIMUM.
  • PRESSURE RATINGS: ‘FOURWENTS’ H - 400 SERIES SWIVEL JOINTS ARE PRESSURE RATED FOR 400 BAR.
  • TEMPERATURE: UP TO 200° C
  • BODY: SS 316
  • ROTOR: SS 316
  • SEAL: VITON-SEAL IS SUITABLE FOR 200° C
  • END FITTINGS: FEMALE THREADS AT BOTH ENDS

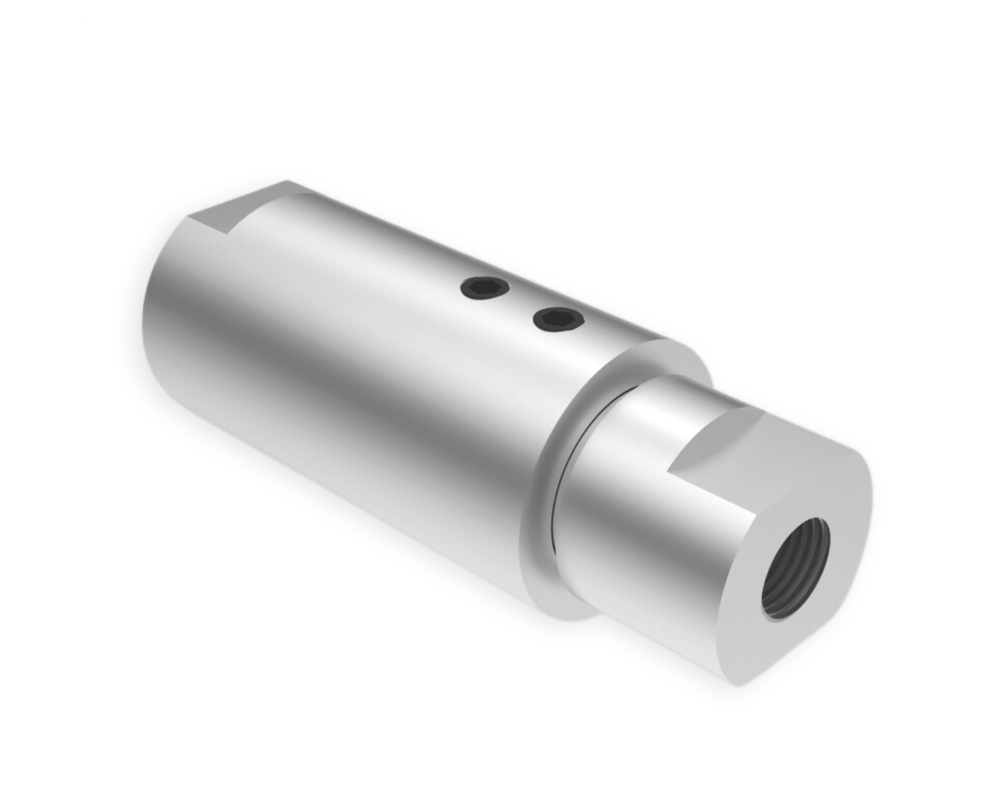

Swivel Joint H Series

TYPE: HN

SIZE: 1/4” TO 1”
OPERATING DATA
MAX. PRESSURE UP TO 400 BAR
MAX. TEMPERATURE UP TO 200° C
MAX. SPEED UP TO 50 RPM

FOR MORE DETAILS VIEW OUR BROCHURE
